Extended-range 1D and 2D scanning for the warehouse.

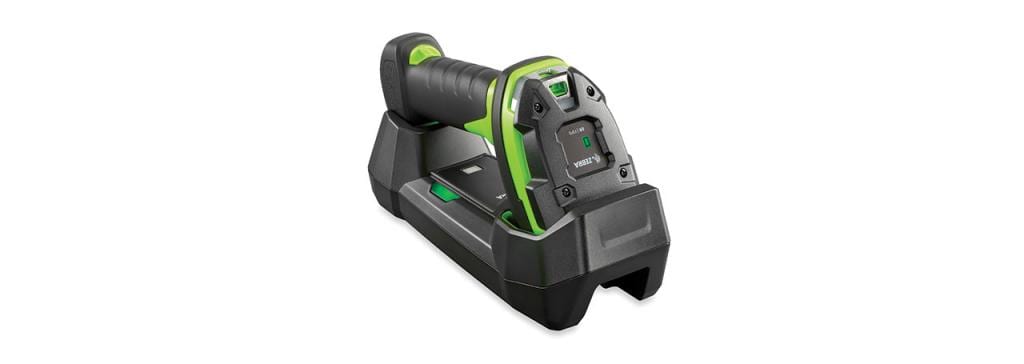

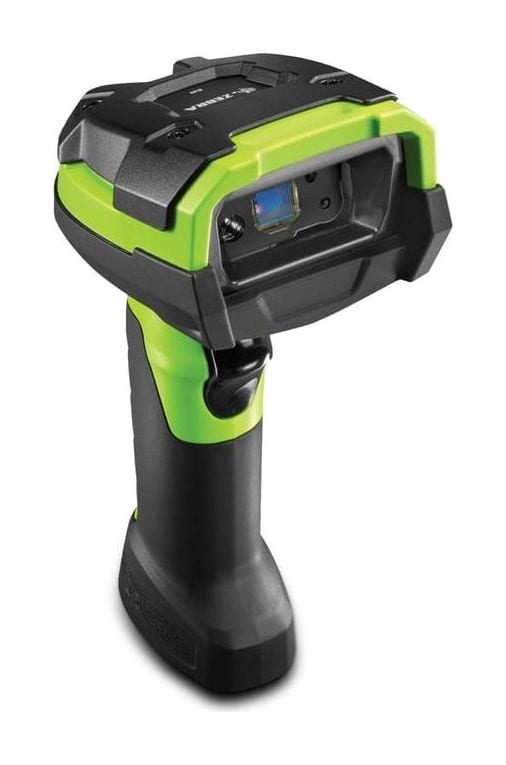

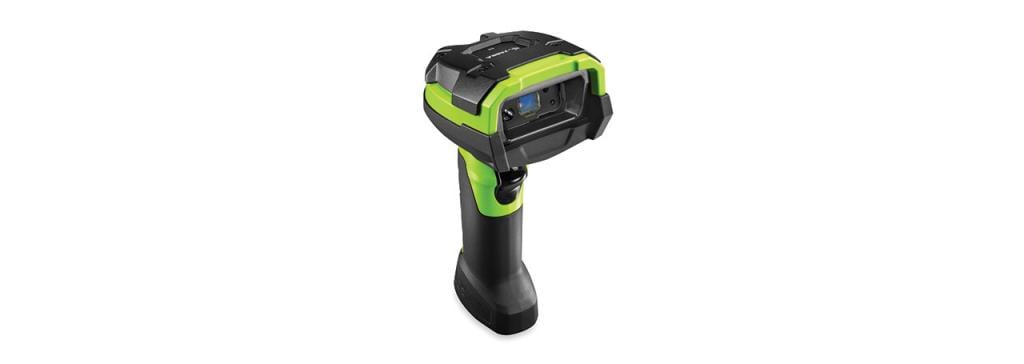

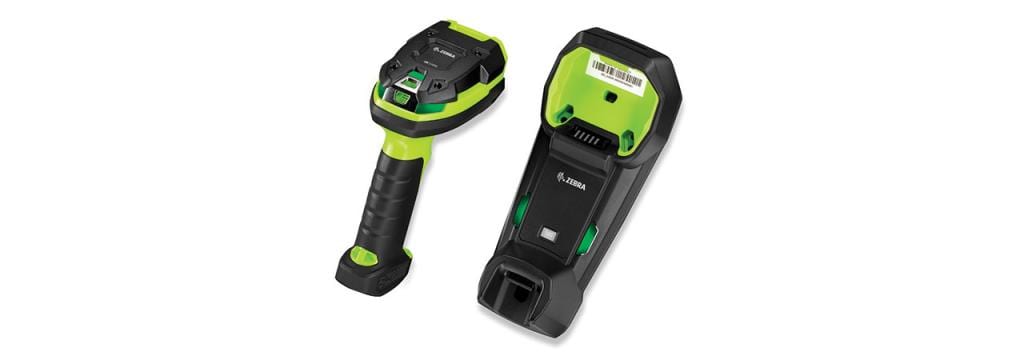

The DS3608-ER (corded) and DS3678-ER (cordless) are Zebra's extended-range area imagers for warehouse and manufacturing work. Zebra's spec sheet rates them to capture 1D and 2D barcodes from 3 in./7.6 cm to 70 ft/21.4 m away, so workers can read barcodes on a picklist in hand, extra-wide codes a hand's length away and codes on the uppermost shelves of the warehouse racks.
Connectivity :
Wired
Interface :
USB, RS232, keyboard wedge; EtherNet/IP, PROFINET and Modbus TCP through Zebra Network Connect
Decoder :
1D and 2D codes
IP Rating :
Scanner IP65 and IP68
Scan Pattern :
Area imager, 1,280 x 800 (1 megapixel); illumination one 660 nm LED; aimer 655 nm laser
Symbol Contrast :
25% minimum reflectance difference
Operating Temperature :
-30 °C to 50 °C
Drop withstand :
Multiple 3.0 m (10 ft) drops to concrete at room temperature; multiple 2.4 m (8 ft) drops from -30 °C to 50 °C
Tumble withstand :
7,500 tumbles at 1.0 m (3.3 ft)
