Walk to the part, not the part to the scanner
A Class 1 Bluetooth link with a minimum 100 m line-of-sight range lets an operator scan marked engine blocks, castings and fabrications where they sit, then send data to the cradle.
IIoT
Browse IIoT
IIoT
Browse IIoT
Zebra · Ultra-rugged cordless direct part mark (DPM) barcode scanner
A cordless ultra-rugged 1D/2D scanner that reads printed barcodes and direct part marks while you move around large parts, linked by Bluetooth to a charging cradle; the corded version is the DS3608-DP.
DS3678-DP price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra DS3678-DP

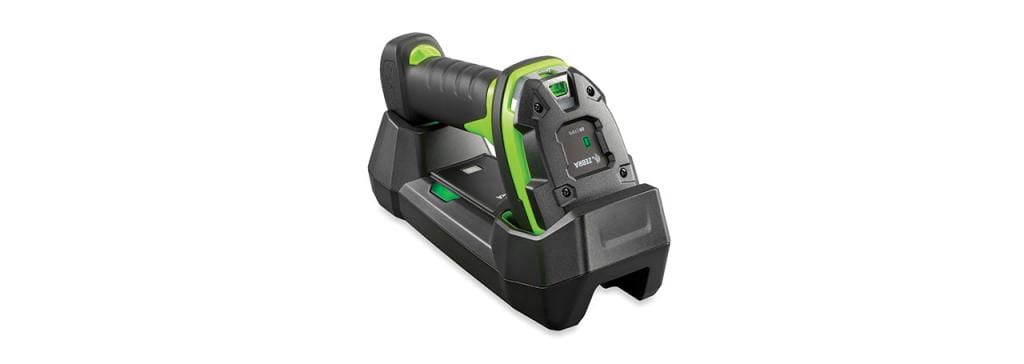

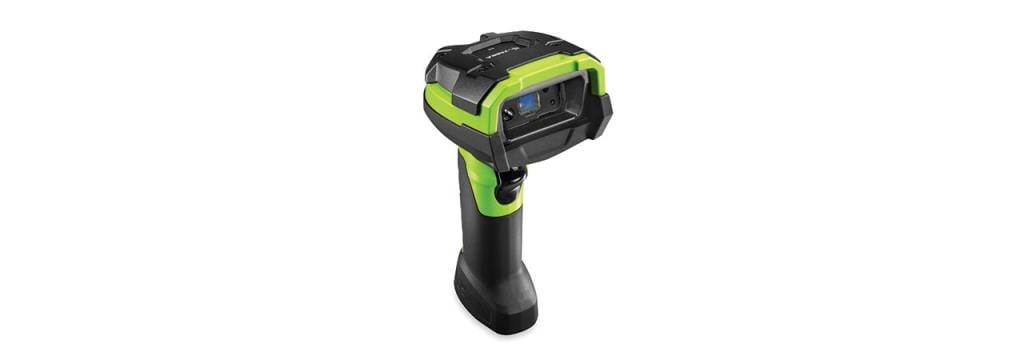

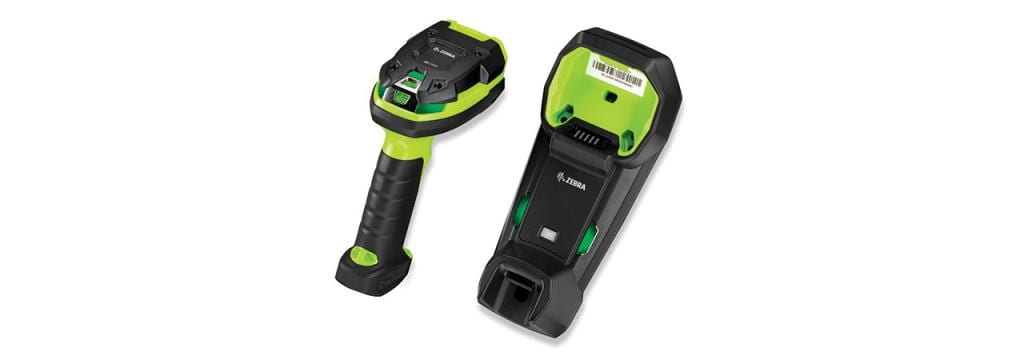

Photos
Why the DS3678-DP
The DS3678-DP is the cordless version of Zebra's direct-part-mark scanner. It adds a 3,100 mAh battery, Bluetooth and a charging cradle to the same imager, which suits parts too large or too heavy to carry to a bench scanner.
A Class 1 Bluetooth link with a minimum 100 m line-of-sight range lets an operator scan marked engine blocks, castings and fabrications where they sit, then send data to the cradle.
Zebra rates the PowerPrecision+ 3,100 mAh battery at more than 100,000 scans per charge. The cradle charges it in up to 3 hours on external power or up to 10 hours from USB, per Zebra's reference guide.
Zebra lists the STB3678-C100F3WW and the industrial FLB3678-C100F3WW cradle. The guide describes up to seven scanners paired to one cradle (Multipoint-to-Point) and an Out of Range Batch Mode on supported configurations.
Printed codes and direct part marks such as dot peen, laser etch and chemical etch, with a 10 mil Data Matrix typically read from 0.0 cm to 8.6 cm on Zebra's DP table, held close to the part. Zebra's reference guide lists the DPA at 0.5 cm to 12.1 cm.
Sealed to IP65 and IP68, with multiple 3.0 m drops to concrete at room temperature, 2.4 m drops from -20 °C to 50 °C, and 7,500 tumbles at 1.0 m. At 402 g it is 98 g heavier than the corded model.
Allmark can configure the scanner with 123Scan, set up the cradle, connect it to your MES, ERP or warehouse software and train your team on site.
Used in
For buyers in India
These are the points buyers in India ask us about the DS3678-DP. Mention the ones that apply to you when you request a quote.
Keep the DS3678-DP cradle in shade, out of direct sun and away from furnaces, or it can be outside its charging range. Zebra gives the cradle a nominal charging range of 0 °C to 40 °C and an ideal range of 5 °C to 35 °C.
Confirm the exact DS3678-DP configuration with us before ordering, as the two India codes differ. The reference guide lists DS3678-DP2F003VZK and DS3678-DPAF002VZK as 'India & Korea' cordless direct-part-mark configurations. The descriptions mention FIPS (a US government security standard for encryption), and the DPAF002VZK adds an industrial-focus option.
For a freezer colder than -20 °C, choose the corded DS3608-DP: Zebra rates it down to -30 °C, and the cordless DS3678-DP down to -20 °C. For moves in and out of a freezer, Zebra suggests a heated holder to reduce condensation on the scan window.
Specifications
| General | |
|---|---|
| Models | DS3678-DP and DS3678-DPA (cordless, one range) |
| India configuration | DS3678-DP2F003VZK and DS3678-DPAF002VZK ('India & Korea', Zebra reference guide) |
| Connectivity | Wireless |
| Battery | PowerPrecision+ 3,100 mAh Li-Ion rechargeable (Zebra: 100,000+ scans per charge) |
| Colour | DP: Industrial Green; DPA: black (Zebra product page). Zebra's reference guide lists the India cordless DPA codes as Industrial Green. |
| Input voltage | Cradle: external supply (see Zebra reference guide); scanner battery charges in the cradle |
| User indicators | Direct decode indicator, LEDs, beeper, vibration |
| Scanning | |
| Decoder | 1D and 2D codes, including direct part marks (DPM) |
| Scan Pattern | Area imager: direct illumination from two warm-white LEDs, diffuse illumination from a ring of red 634 nm LEDs, 655 nm laser aimer |
| Symbol Contrast | 15% minimum reflectance difference |
| Image sensor | 1,280 × 960 pixels |
| Field of view | Horizontal 31°, vertical 23° |
| Aimer | 655 nm laser |
| Skew / pitch / roll | ±60° / ±60° / ±360° |
| Direct part marks | Dot peen, laser etch, ink mark, chemical etch, inkjet mold, cast, thermal spray |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| IUID | IUID parsing supported |
| Image capture | Basic |
| DP range: Code 39 5 mil | 0.5 cm to 7.1 cm (DPM Mode off) |
| DP range: PDF417 6.6 mil | 0.5 cm to 8.1 cm (DPM Mode off) |
| DP range: Data Matrix 5 mil | 1.0 cm to 6.3 cm (DPM Mode off) |
| DP range: Data Matrix 10 mil | 0.0 cm to 8.6 cm (DPM Mode off) |
| DP range: QR Code 10 mil | 0.0 cm to 8.1 cm (DPM Mode off) |
| DP range: UPC 13 mil (100%) | 2.5 cm to 14.7 cm (DPM Mode off) |
| DPA range: Data Matrix 10 mil / QR Code 10 mil | 0.5 cm to 12.1 cm (DPM Mode off, Zebra reference guide) |
| Connectivity | |
| Interface | USB, RS232, keyboard wedge; EtherNet/IP, PROFINET, Modbus TCP and standard TCP/IP through Zebra Network Connect for Automation |
| Bluetooth | Class 1, v4.0 LE, SPP and HID; minimum 100 m line of sight (Class 2 minimum 10 m) |
| Cradles | STB3678-C100F3WW (standard) and FLB3678-C100F3WW (industrial); FLB cradle IP65 |
| Physical and environment | |
| IP Rating | Scanner IP65 and IP68; FLB cradle IP65 |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Drop withstand | Multiple 3.0 m (10 ft) drops to concrete at room temperature; multiple 2.4 m (8 ft) drops to concrete from -20 °C to 50 °C |
| Tumble withstand | 7,500 tumbles at 1.0 m (3.3 ft) |
| Dimensions (H × W × D) | 18.5 × 7.7 × 14.3 cm |
| Weight | 402 g |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing (Zebra recommends its heated scanner holder to reduce scan-window condensation when moving in and out of freezers) |
| ESD | ±20 kV air, ±10 kV direct, ±10 kV indirect |
| Ambient light | 0-108,000 lux |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| Electrical safety | EN/IEC/UL 60950-1 |
| LED and laser safety | Exempt-risk LED per IEC/EN 62471; Class 2 laser per IEC/EN 60825-1 |
| EMI/RFI | EN 55022, EN 55024, EN 61000 series, 47 CFR Part 15, ICES-003 |
| Software | |
| Utilities | 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect, Remote Diagnostics, ScanSpeed Analytics |
| Suite | Zebra DNA for Scanners: PRZM Intelligent Imaging for DPM, Label Parse+, Multi-Code Data Formatting (up to 20 codes), Virtual Tether, AutoConfig, Wi-Fi Friendly Mode, Simple Setup Experience |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
For the DS3678-DP, Zebra sells the cradle and the interface cable separately. Ask for them, spare batteries and any power supply in the same quotation. Part numbers are from Zebra's DS36X8 Product Reference Guide (October 2025) and 3600 Series accessory guide; we confirm the India part numbers in the quotation.
Specifications from Zebra's published documents, last checked 13 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
More detail
Zebra's heading for the DP model: "Unstoppable performance for 1D/2D direct part marks (DPM) and barcodes."
As members of the Zebra 3600 Ultra-Rugged Series of scanners, the 1D/2D DS3608-DP corded and DS3678-DP cordless scanners, which Zebra calls "practically indestructible", bring what Zebra describes as "dependable lightning-fast capture of virtually every direct part mark" to aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required. The DS3608-DP and DS3678-DP also capture virtually any 1D and 2D barcode displayed on a screen or printed on a label; Zebra calls this "real value — unstoppable performance in a single flexible device" that can meet scanning needs from the assembly line to quality control.
Industries: Manufacturing, Warehouse
Used for: maintenance management, product authentication, quality assurance, unique-identifier tracking, supply-chain traceability
Compare
| Feature | Zebra DS3678-DP (DS3678-DPA) | Zebra DS3678-SR (cordless standard range) | Zebra DS3600-XR (DS3678-XR) |
|---|---|---|---|
| Scans per charge | 100,000+ | 100,000+ | 80,000 |
| Weight (cordless) | 402 g | 407 g | 410 g |
| Aimer | 655 nm laser | 610 nm LED | 520 nm green laser |
| Zebra India & Korea part number | DS3678-DP2F003VZK / DS3678-DPAF002VZK | DS3678-SR0F003VZK | See the DS3600-XR page |
| Best for | Marked parts too large to carry to a bench | Printed labels from a few centimetres to about 1.5 m | Rack labels read at long distance |
If your job differs from what the DS3678-DP is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The DS3678-DP price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
The scanner pairs by Bluetooth with its cradle, and the cradle also charges the battery, so plan for one cradle per workstation or per group of scanners. Zebra's guide describes up to seven scanners paired to one cradle. Tell us how many scanners you will run so we can quote the right cradles.
Zebra's spec sheet rates it at more than 100,000 scans per charge for the 3,100 mAh battery, while its reference guide says up to 80,000 for the DP, so plan on the lower figure until confirmed. The cradle charges it in up to 3 hours on external power or up to 10 hours on USB. Scanning conditions, temperature and settings change the real figure.
Zebra's guide describes an Out of Range Batch Mode on supported configurations, where scans are stored and sent when the link returns. The minimum line-of-sight range is 100 m for Class 1. Confirm the mode is available on the part number you choose when you ask for a quotation.
It is rated to -20 °C, and the cradle's 0 °C to 40 °C charging range means the cradle must stay in a warm area. For freezers at -30 °C choose the corded DS3608-DP.
Zebra's product page describes the DP as Industrial Green and the DPA as black, with the same family design. The India part numbers differ, DS3678-DP2F003VZK and DS3678-DPAF002VZK, and their descriptions in the guide are not the same, so ask us to confirm which configuration you need.
Yes. We install the DS3678-DP at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
