Zebra · Cordless ultra-rugged high-density barcode scanner
A cordless ultra-rugged 1D/2D scanner for very small, dense codes, down to 3 mil Code 128, for production lines and stores where a cable gets in the way; the corded version is the DS3608-HD.
DS3678-HD price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra DS3678-HD
Photos
Why the DS3678-HD

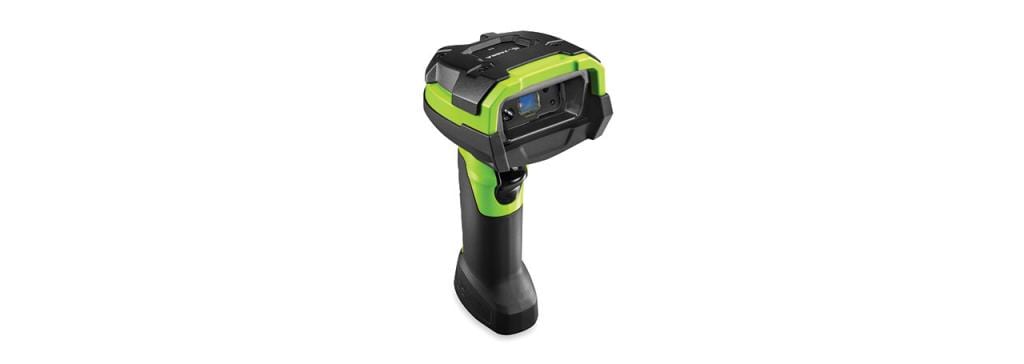

The DS3678-HD is the cordless high-density version of Zebra's DS3600 ultra-rugged family. It reads the same tiny codes as the corded DS3608-HD and adds a battery and Bluetooth.
Zebra's typical ranges: a 3 mil Code 128 from 5.1 cm to 7.6 cm, a 10 mil Data Matrix from 2.5 cm to 22.9 cm and a 20 mil Code 128 up to 66.0 cm. It uses a 1,280 × 960 sensor and a 655 nm laser aimer. For labels read from a metre or more away, the SR or XR fits better.
The 3,100 mAh PowerPrecision+ battery is rated for more than 100,000 scans on one charge, and it reports its health and charge level. A full charge takes up to 3 hours on external power or up to 10 hours on USB power.
The STB3678 cradle charges the scanner and links it to the host. The FLB3678 cradle is sealed to IP65, and Zebra says its industrial charging contacts withstand 250,000 insertions. A forklift mounting plate is available for the FLB3678.
Class 1 Bluetooth 4.0 LE gives a minimum 100 m line-of-sight range to the cradle. Virtual Tether alerts the user when the scanner is left behind or goes out of range, which helps on large shop floors.
Sealed to IP65 and IP68, tested for multiple 3.0 m drops to concrete at room temperature and 2.4 m drops from -20 °C to 50 °C, and 7,500 tumbles at 1.0 m. It weighs 411 g with the battery.
Pair and configure it with 123Scan, and manage batteries and settings across a fleet with Scanner Management Service. Allmark can connect it to your MES, ERP or warehouse software, including our own warehouse management system, and install and train on site.
Used in
For buyers in India
These are the points buyers in India ask us about the DS3678-HD. Mention the ones that apply to you when you request a quote.
Mount the STB3678 or FLB3678 cradle in an air-conditioned or shaded spot, not on an open dock or near a reflow oven. Zebra's reference guide says the DS3678-HD battery charges at 0 °C to 40 °C, ideally 5 °C to 35 °C; the scanner itself is rated to work up to 50 °C.
For freezers run colder than -20 °C, choose the corded DS3608-HD (-30 °C) and keep any cradle outside the cold room. The cordless DS3678-HD is rated down to -20 °C, and its battery charges only from 0 °C.
The cordless DS3678-HD reads the small codes on pharmacy and hospital-store labels, and its battery lets staff walk a ward store or pharmacy within Bluetooth range of the cradle. It decodes QR Code, Data Matrix, PDF417 and UPC/EAN. Zebra's typical ranges are 5.1 cm to 15.2 cm for a 5 mil PDF417 and 2.5 cm to 22.9 cm for a 10 mil Data Matrix.
For India, Zebra's DS36X8 reference guide lists DS3678-HD2F003VZK as the 'India & Korea' cordless HD. The keypad-and-display HD (DS3678-HD2F003VKWW) carries no India marking. Where the host cannot power the cradle, use Zebra's PWR-BGA12V50W0WW supply: it accepts 100-240 V AC, which covers India's 230 V mains.
Specifications
| General | |
|---|---|
| Models | DS3678-HD (cordless); DS3608-HD (corded, separate page) |
| India configuration | DS3678-HD2F003VZK ('India & Korea', Zebra reference guide) |
| Connectivity | Wireless |
| Battery | PowerPrecision+ 3100 mAh Li-Ion Rechargeable |
| Scans per full charge | 100,000+ |
| Charging time | Up to 3 hours with external power; up to 10 hours with USB power |
| Colour | Industrial Green |
| Input voltage | Host powered 4.5-5.5 V DC; external supply 11.4-12.6 V DC |
| User indicators | Direct decode indicator, LEDs, beeper, vibration |
| Scanning | |
| Decoder | 1D and 2D codes |
| Scan Pattern | Area imager with a 655 nm laser aimer and warm-white LED illumination |
| Symbol Contrast | 15% minimum reflectance difference |
| Image sensor | 1,280 × 960 pixels |
| Field of view | Horizontal 31°, vertical 23° |
| Aimer | 655 nm laser |
| Illumination | Two warm-white LEDs |
| Skew / pitch / roll | ±60° / ±60° / ±360° |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| IUID | IUID parsing supported |
| Image capture | Basic |
| Range: Code 128 3 mil | 5.1 cm to 7.6 cm |
| Range: Code 128 20 mil | 5.6 cm to 66.0 cm |
| Range: Data Matrix 10 mil | 2.5 cm to 22.9 cm |
| Range: PDF417 5 mil | 5.1 cm to 15.2 cm |
| Connectivity | |
| Interface | USB, RS232, keyboard wedge; industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP, standard TCP/IP) through Zebra Network Connect for Automation |
| Industrial Ethernet adapter | Zebra's Network Connect guide uses a separate EA3600 adapter on the scanner's RS232 cable, with its own 12 V supply |
| Bluetooth | Class 1, version 4.0 (LE); SPP and HID profiles |
| Data rate | Classic 3 Mbit/s (2.1 Mbit/s); Low Energy 1 Mbit/s (0.27 Mbit/s) |
| Bluetooth range | Class 1: minimum 100 m (300 ft) line of sight; Class 2: minimum 10 m (30 ft) |
| Cradles | STB3678 standard cradle; FLB3678 IP65 sealed cradle (charging contacts rated for 250,000 insertions); forklift mounting plate for the FLB3678 |
| Physical and environment | |
| IP Rating | Scanner IP65 and IP68; FLB cradle IP65 |
| Operating Temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Drop withstand | Multiple 3.0 m (10 ft) drops to concrete at room temperature; multiple 2.4 m (8 ft) drops to concrete from -20 °C to 50 °C |
| Tumble withstand | 7,500 tumbles at 1.0 m (3.3 ft) |
| Dimensions (H × W × D) | 18.5 × 7.6 × 14.2 cm |
| Weight | 411 g (corded DS3608-HD: 309 g) |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing (Zebra recommends its heated scanner holder to reduce scan-window condensation when moving in and out of freezers) |
| ESD | ±25 kV air, ±10 kV direct/indirect (EN61000-4-2) |
| Ambient light | 0-108,000 lux |
| Battery charging temperature | 0 °C to 40 °C nominal; 5 °C to 35 °C ideal |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| Electrical safety | EN 60950-1: 2006 and amendments; IEC 60950-1: 2005 and amendments; UL 60950-1; CAN/CSA-C22.2 No. 60950-1-07 |
| Laser/LED safety | IEC 62471: 2006 (Ed. 1.0); EN 62471: 2008 (LED); UL, VDE and CU recognized laser component |
| EMI/RFI | EN 55022: 2010 (Class B); EN 55024: 2010; EN 61000-6-2: 2005; EN 61000-3-2: 2006; EN 61000-3-3: 2013; 47 CFR Part 15 Subpart B; ICES-003 Issue 5 |
| Software | |
| Utilities | 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect |
| Suite | Zebra DNA for Scanners: PRZM Intelligent Imaging, Label Parse+, Multi-Code Data Formatting, ScanSpeed Analytics, Virtual Tether |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
For the DS3678-HD, Zebra sells the cradle and the interface cable separately. Ask for them, spare batteries and any power supply in the same quotation. Part numbers are from Zebra's DS36X8 Product Reference Guide (October 2025) and 3600 Series accessory guide; we confirm the India part numbers in the quotation.
Specifications from Zebra's published documents, last checked 13 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
More detail
Zebra's heading for the HD model: "Unstoppable performance for high density 1D/2D barcodes."
Zebra says the DS3608-HD corded and DS3678-HD cordless scanners are ready for "one of the world’s toughest environments — the electronics manufacturing production line", with "truly unstoppable performance" to prevent the high cost of unplanned production line downtime, and "first-time every time capture" of the many types of small and high-density barcodes printed on the components in the products you make.
Industries: Manufacturing, Warehouse
Used for: Work-in-Process, Inventory Labels, Shipping Labels, Receiving Labels, Asset Labels
Compare
| Feature | Zebra DS3600-HD (DS3608-HD / DS3678-HD) | Zebra DS3600-SR (DS3608-SR / DS3678-SR) | Zebra DS3600-XR (DS3608-XR / DS3678-XR) |
|---|---|---|---|
| Image sensor | 1,280 × 960 | 1,280 × 800 | Near 1,280 × 800 + far 1,920 × 1,080 |
| Aimer | 655 nm laser | 610 nm LED | 520 nm green laser |
| Smallest code on Zebra's spec sheet | Code 128 3 mil: 5.1 cm to 7.6 cm | Code 128 5 mil: 3.3 cm to 17 cm | Code 39 5 mil: 3.3 cm to 1.4 m |
| Longest typical range on Zebra's spec sheet | Code 128 20 mil: up to 66.0 cm | Code 128 40 mil: up to 152.4 cm | Code 39 100 mil: up to 32.0 m |
| Weight (corded / cordless) | 309 g / 411 g | 305 g / 407 g | 308 g / 410 g |
| Scans per charge (cordless) | 100,000+ | 100,000+ | 80,000 |
| Best for | Cordless reading of codes down to 3 mil, for staff on the move | Standard labels from near contact to about 1.5 m | Rack labels read at long distance, from forklifts and docks |
If your job differs from what the DS3678-HD is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The DS3678-HD price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
If staff roam and your smallest code is below 5 mil, choose the HD: Zebra lists a 3 mil Code 128 from 5.1 cm to 7.6 cm, and the SR sheet starts at 5 mil. If they also scan larger labels from further away, choose the DS3678-SR: a 40 mil Code 128 reads up to 152.4 cm, against 66.0 cm for a 20 mil code on the HD. The battery, Bluetooth range and cradles are the same.
Zebra gives a minimum range of 100 m (300 ft) in direct line of sight for Class 1 Bluetooth, and 10 m (30 ft) for Class 2. Walls, racks and machines shorten it. Virtual Tether warns the user if the scanner is carried out of range or left behind.
Zebra rates the 3,100 mAh PowerPrecision+ battery for more than 100,000 scans per full charge. A full charge takes up to 3 hours with external power and up to 10 hours with USB power. Charge it between 0 °C and 40 °C.
Only down to -20 °C. For colder rooms choose the corded DS3608-HD, rated to -30 °C. Zebra recommends its heated scanner holder to reduce condensation on the scan window when going in and out of freezers.
Zebra's reference guide lists a keypad-and-display HD configuration, DS3678-HD2F003VKWW, but without an India marking; the India & Korea cordless HD is DS3678-HD2F003VZK. Zebra also sells the keypad model as the DS3600-KD. Ask us if your process needs data entry on the scanner.
Yes. We install the DS3678-HD at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
