Zebra · Cordless ultra-rugged high-performance barcode, OCR and document scanner
A Bluetooth cordless 1D/2D scanner that docks in a charging cradle and captures photos, signatures, OCR text and documents as well as codes, for staff who gather information on the move; the corded version is the DS3608-HP.
DS3678-HP price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra DS3678-HP

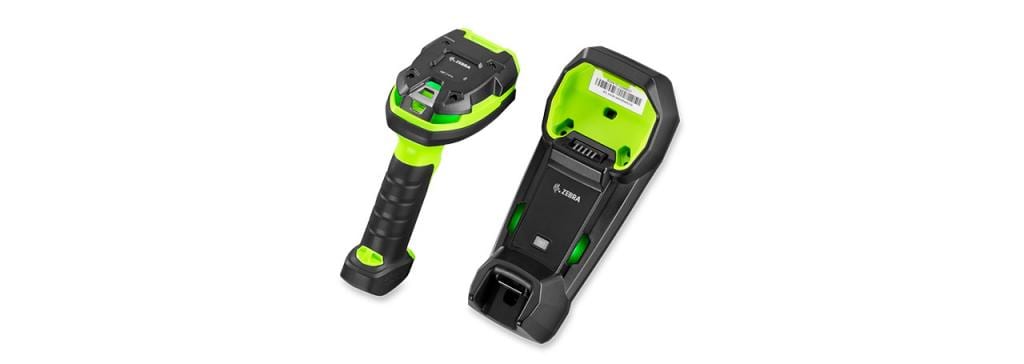

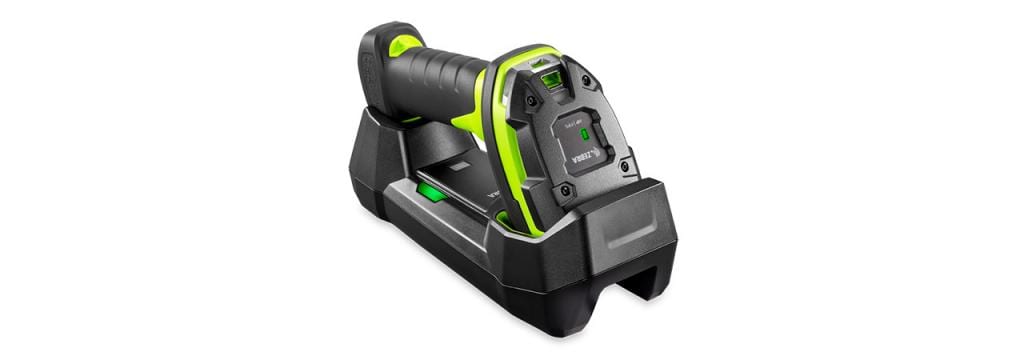

Photos
Why the DS3678-HP
The DS3678-HP is the cordless high-performance model in Zebra's DS3600 ultra-rugged line, and the one Zebra pictures on its HP product page. 'HP' stands for High Performance: a mid-range imager that also takes photos and documents, not a high-power scanner. It pairs with a cradle over Bluetooth, which also charges it.
Zebra's product page lists proof of pickup and delivery, picking and packing, shipping and receiving and work in progress as uses. With the HP, a walking user can scan a code and also capture a photo, a signature or a document with the same handheld.
Besides 1D and 2D codes, Zebra lists OCR-A/B, MICR-E13B and US currency serial numbers. Zebra's Intelligent Document Capture firmware can frame a document around an anchor barcode or a printed border; the guide says it applies to the HP configuration only.
Pair with an STB3678 standard cradle or an IP65 FLB3678 forklift cradle, or connect straight to a Bluetooth host using the SPP or HID profile. The radio is Class 1 (Bluetooth 4.0 LE), with a minimum of 100 m line of sight in open air and 10 m for Class 2.
Zebra's spec sheet says 100,000+ scans per charge, while its reference guide says up to 70,000 for the HP, so plan on the lower figure until confirmed. Zebra lists charging in up to 3 hours on external power or up to 10 hours on USB power, at 0-40 °C.
IP65 and IP68, multiple 3.0 m drops to concrete at room temperature, 2.4 m drops from -20 °C to 50 °C, and 7,500 tumbles at 1.0 m. The cordless scanner weighs 411 g.
Allmark can connect the scanner to your ERP, billing or warehouse software, including our own warehouse management system, set up the cradle and train your staff on site.
Used in
For buyers in India
These are the points buyers in India ask us about the DS3678-HP. Mention the ones that apply to you when you request a quote.
In May and June, place the DS3678-HP cradle in shade or an air-conditioned room, not on an open loading bay. Zebra's guide charges the battery at 0-40 °C, ideally 5-35 °C; the scanner itself works to 50 °C.
Confirm exactly which configuration is supplied before ordering DS3678-HP2F003VZK, Zebra's 'India & Korea' cordless HP code. Zebra's DS36X8 guide lists it next to a keypad-and-display code, DS3678-HP2F003VKK. The guide's description of the VZK code says 'Extended Range' where its worldwide twin says 'High Performance'.
With one cordless DS3678-HP, a driver or loader can scan the e-way bill QR and capture a paper delivery note as an image. It reads QR Code, and Zebra lists proof of pickup and delivery as an HP use.
The DS3678-HP reads the symbologies on Indian medicine packs: UPC/EAN, GS1 DataBar, QR Code and Data Matrix, including EAN-13 codes starting 890, the prefix assigned to GS1 India.
Keep the DS3678-HP cradle outside the cold room, and use the corded DS3608-HP, rated to -30 °C, where the scanner must stay inside. The cordless HP is rated to -20 °C, and its battery charging range starts at 0 °C.
Specifications
| General | |
|---|---|
| Models | DS3678-HP (cordless); DS3608-HP (corded, separate page) |
| India configuration | DS3678-HP2F003VZK ('India & Korea', Zebra reference guide) |
| Connectivity | Wireless |
| Colour | Industrial Green |
| Battery | PowerPrecision+ 3100 mAh Li-Ion Rechargeable |
| Scans per full charge | 100,000+ (spec sheet); up to 70,000 (reference guide) |
| Charging time | Up to 3 hours with external power; up to 10 hours with USB power (reference guide) |
| User indicators | Direct decode indicator, LEDs, beeper, vibration |
| Scanning | |
| Decoder | 1D and 2D codes, OCR, Document & Photos Scanning |
| Scan Pattern | Area imager with a 655 nm laser aimer and two warm-white LEDs for illumination |
| Symbol Contrast | 15% minimum reflectance difference |
| Image sensor | 1,280 × 960 pixels |
| Field of view | Horizontal 31°, vertical 23° |
| Illumination | Two warm-white LEDs |
| Aimer | 655 nm laser |
| Skew / pitch / roll | ±60° / ±60° / ±360° |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| OCR | OCR-A/B, MICR-E13B, US Currency Serial Number |
| IUID | IUID codes read, fields separated as the application requires |
| Photos, signatures and documents | Captured as images; Intelligent Document Capture firmware (DS36X8-HP configuration only) |
| Range: Code 128 5 mil | 15.2 cm to 35.6 cm |
| Range: Code 128 20 mil | 12.7 cm to 114.3 cm |
| Range: Code 128 40 mil | 7.1 cm to 203.2 cm |
| Range: Data Matrix 7.5 mil | 17.8 cm to 27.9 cm |
| Range: Data Matrix 10 mil | 15.2 cm to 38.1 cm |
| Ambient light immunity | Up to 108,000 lux (direct sunlight) |
| Connectivity | |
| Interface | Bluetooth through the STB3678 or FLB3678 cradle (USB, Serial RS232, keyboard wedge; EtherNet/IP, PROFINET and Modbus TCP through Zebra Network Connect), or direct to a Bluetooth host |
| Bluetooth radio | Class 1, Bluetooth 4.0 (LE), SPP and HID profiles |
| Radio range | Minimum 100 m (300 ft) line of sight in open air (Class 1); minimum 10 m (30 ft) (Class 2) |
| Pairing | Up to seven scanners to one cradle (multipoint-to-point) and Out of Range Batch Mode, as Zebra's guide describes, on supported configurations |
| Cradles | STB3678-C100F3WW standard cradle; FLB3678-C100F3WW IP65 forklift cradle |
| Physical and environment | |
| IP Rating | Scanner IP65 and IP68; FLB cradle IP65 |
| Operating Temperature | -20 °C to 50 °C |
| Battery charging temperature | 0 °C to 40 °C nominal; 5 °C to 35 °C ideal (reference guide) |
| Drop withstand | Multiple 3.0 m drops to concrete at room temperature; multiple 2.4 m drops from -20 °C to 50 °C |
| Tumble withstand | 7,500 tumbles at 1.0 m |
| Dimensions (H × W × D) | 18.5 × 7.6 × 14.2 cm |
| Weight | 411 g |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing |
| ESD | ±25 kV air, ±10 kV direct, ±10 kV indirect discharge (EN 61000-4-2) |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| LED safety | IEC 62471: 2006 (Ed. 1.0); EN 62471: 2008 |
| Software | |
| Document capture | Intelligent Document Capture (IDC): Anchored, Free-Form or Linked mode; up to eight anchor symbologies (Code 128, Code 39, Interleaved 2 of 5, Discrete 2 of 5, Codabar, PDF417, Data Matrix, EAN-128) |
| Utilities | 123Scan, Scanner SDK, Scanner Management Service (SMS), Zebra Network Connect for industrial Ethernet |
| Suite | Zebra DNA for Scanners: PRZM Intelligent Imaging, Label Parse+, Multi-Code Data Formatting, ScanSpeed Analytics, Virtual Tether |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
For the DS3678-HP, Zebra sells the cradle and the interface cable separately. Ask for them, spare batteries and any power supply in the same quotation. Part numbers are from Zebra's DS36X8 Product Reference Guide (October 2025) and 3600 Series accessory guide; we confirm the India part numbers in the quotation.
Specifications from Zebra's published documents, last checked 13 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
More detail
Zebra's heading for the HP model: "Unstoppable performance for superior capture of 1D/2D barcodes, photos, documents and more."
As members of the Zebra Ultra-Rugged 3600 Series of scanners, the 1D/2D DS3608-HP corded and DS3678-HP cordless scanners are, in Zebra’s words, "practically indestructible" and ready for "the world’s toughest environments — the warehouse and manufacturing floor".
In addition to capturing virtually any 1D or 2D barcode nearly 7 ft./2.1 m away, these scanners give you the flexibility to capture a wide range of business information to streamline many everyday business processes, including OCR, documents and photos.
Industries: Manufacturing, Warehouse
Used for: picking and packing, shipping and receiving, work in progress, proof of pickup and delivery
Compare
| Feature | Zebra DS3600-HP (DS3608-HP / DS3678-HP) | Zebra DS3600-SR (DS3608-SR / DS3678-SR) | Zebra DS3600-HD (DS3608-HD / DS3678-HD) |
|---|---|---|---|
| Image sensor | 1,280 × 960 | 1,280 × 800 | 1,280 × 960 |
| Aimer | 655 nm laser | 610 nm LED | 655 nm laser |
| Smallest code on Zebra's spec sheet | Code 128 5 mil: 15.2 cm to 35.6 cm | Code 128 5 mil: 3.3 cm to 17 cm | Code 128 3 mil: 5.1 cm to 7.6 cm |
| Longest typical range on Zebra's spec sheet | Code 128 40 mil: up to 203.2 cm | Code 128 40 mil: up to 152.4 cm | Code 128 20 mil: up to 66.0 cm |
| Weight (corded / cordless) | 309 g / 411 g | 305 g / 407 g | 309 g / 411 g |
| Scans per charge (cordless) | 100,000+ (spec sheet) | 100,000+ | 100,000+ |
| Best for | Cordless mid-range scanning with photo, OCR and document capture | Barcode-only reading on the move, from a few centimetres out to about 1.5 m | Very small, dense codes read close up, wire-free |
If your job differs from what the DS3678-HP is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The DS3678-HP price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
No. HP means High Performance in Zebra's DS3600 range. It is a mid-range imager with a 1,280 × 960 sensor that reads 1D and 2D codes and captures photos, signatures, OCR data and documents. Zebra lists a 20 mil Code 128 from 12.7 cm to 114.3 cm. For tiny codes the HD is the better pick; for long reach, the XR.
Yes for scanning: it can pair directly with a Bluetooth host over the SPP or HID profile, as Zebra's guide describes. The battery still charges through the cradle, which Zebra rates at up to 3 hours on external power or up to 10 hours on USB power. The cradle is also the route to USB, RS232, keyboard wedge and industrial Ethernet hosts (Zebra's Network Connect uses a separate EA3600 adapter).
Zebra's spec sheet says 100,000+ scans per charge for the 3,100 mAh battery, but its reference guide says up to 70,000 for the HP. Real life depends on image capture, Bluetooth distance and temperature. Tell us your scans per shift and we will help you size the number of spare batteries.
The SR reads barcodes only, closer in, from 4.4 cm on a 40 mil code. The HP adds photo, signature, OCR and document capture and reads a 40 mil Code 128 out to 203.2 cm, but Zebra's table starts a 5 mil code at 15.2 cm and a 40 mil code at 7.1 cm, so the HP does not read as close in as the SR. Choose the HP when staff capture documents or photos with the scan.
Zebra's DS36X8 reference guide (October 2025) lists DS3678-HP2F003VZK as the 'India & Korea' cordless HP, and DS3678-HP2F003VKK for the keypad-and-display version. The guide describes the VZK code as 'Extended Range', so we confirm the configuration with the distributor, along with the cradle and power supply, before quoting.
Yes. We install the DS3678-HP at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
