Zebra ZD500, GX420, GX430 - Barcode Printer

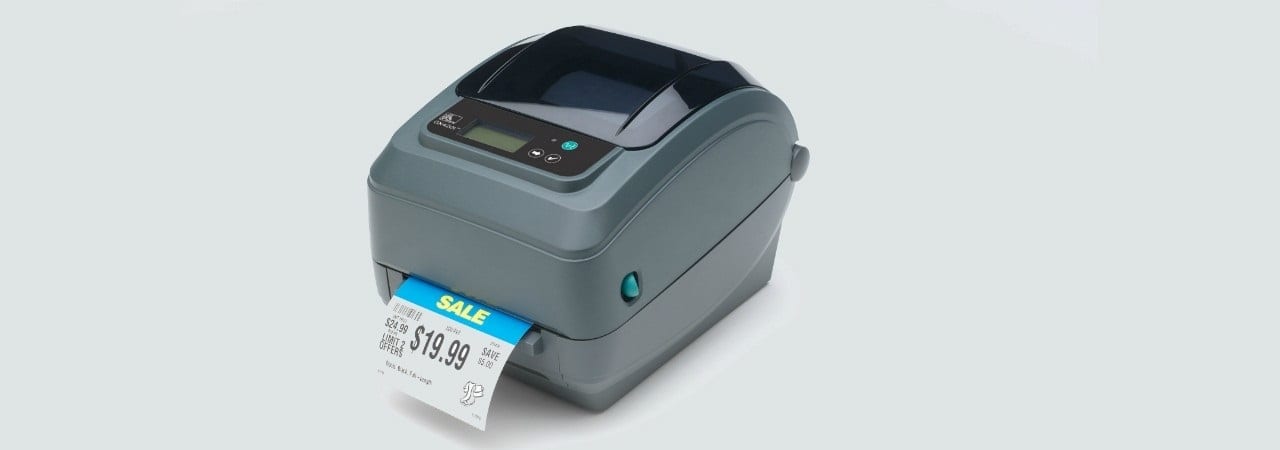

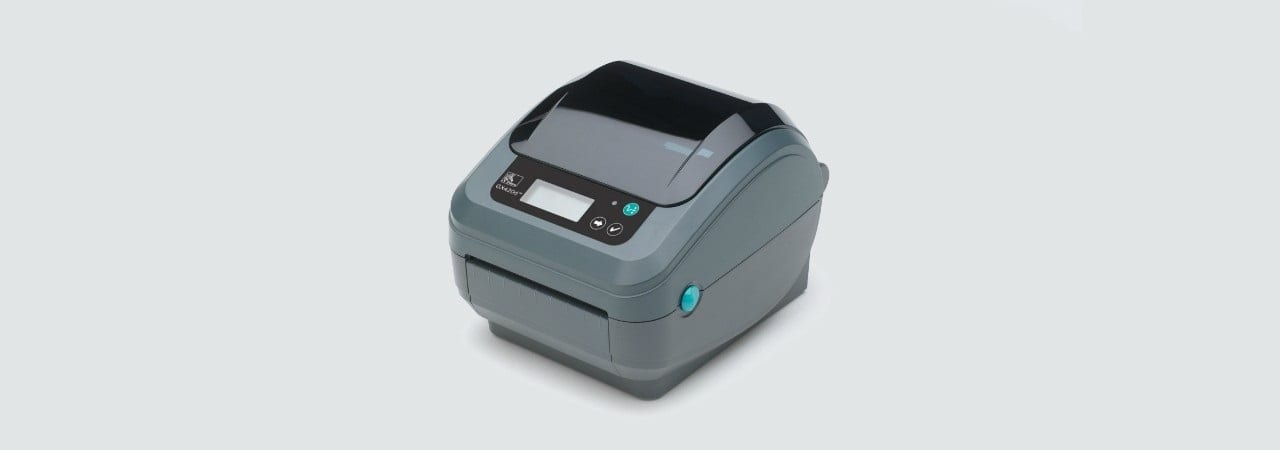

Zebra ZD500 GX420 GX430 Performance Desktop Printers

Printer Model : GX420D (Direct Thermal), GX420T (Thermal Transfer), GX430T (Thermal Transfer), ZD500 (Thermal Transfer)

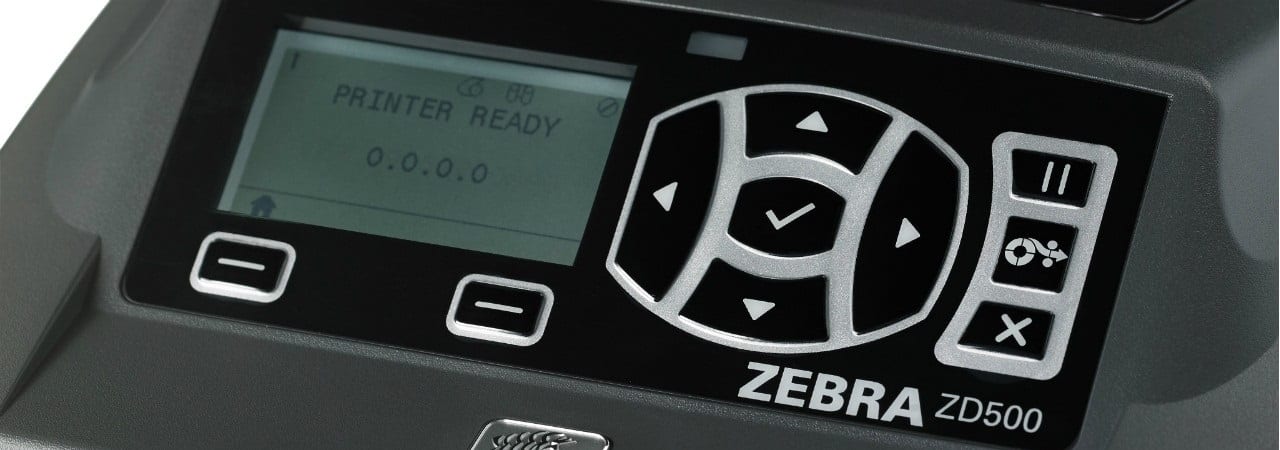

4-inch desktop printers with up to 6 ips at 203 dpi; the ZD500 adds an LCD, Ethernet as standard and a real-time clock.
Firmware : ZPL II; EPL 2 (GX420d, GX420t, GX430t); ZPL II; XML (ZD500)
Programming Languages : ZPL and EPL (GX Series); ZPL (ZD500)

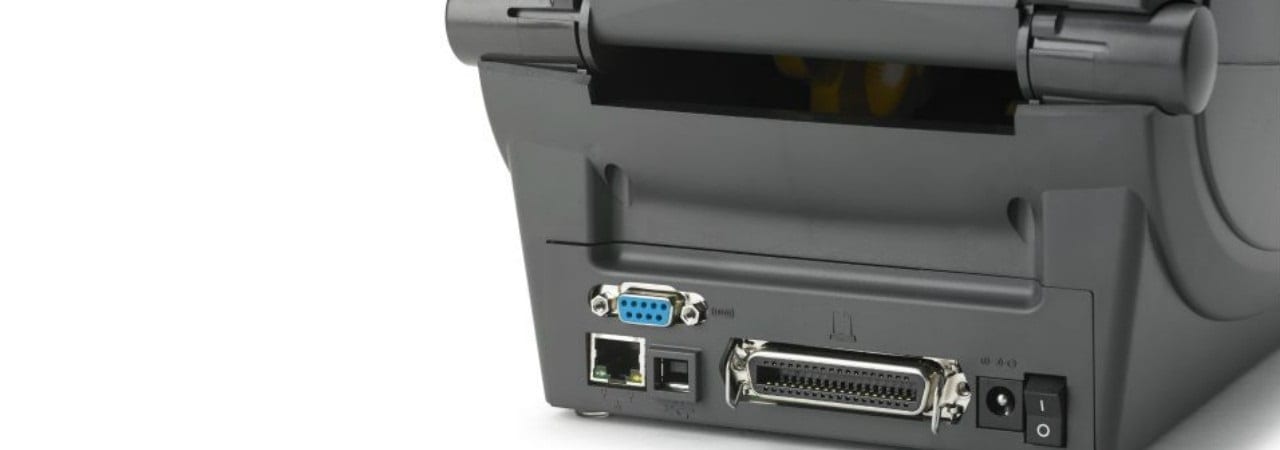

Communications : ZD500: USB 2.0, RS-232 serial, Centronics parallel and 10/100 Ethernet as standard; optional 802.11a/b/g/n Wi-Fi and Bluetooth 3.0. GX420t/GX430t: USB (2.0 compliant), serial and parallel; options are wired Ethernet, Wi-Fi 802.11b/g with display, or Bluetooth with display.
Print Width : 4.09 in./104 mm
Print Speed : 6 in./152 mm per second (203 dpi), 4 in./102 mm per second (300 dpi)
Print Resolution : 203 dpi (GX420d, GX420t, ZD500); 300 dpi (GX430t; optional on the ZD500)
Request a quote

Datasheets and documents

Description Download
Zebra GX420 support and downloads (Zebra Asia Pacific) Open Zebra GX420 support and downloads on the maker's site (new tab)
Zebra GX430t support and downloads (Zebra Asia Pacific) Open Zebra GX430t support and downloads on the maker's site (new tab)
Zebra ZD500 support and downloads (Zebra Asia Pacific) Open Zebra ZD500 support and downloads on the maker's site (new tab)

What these models are used for

  • Labels
  • Tags
  • Receipts
  • Wristbands
