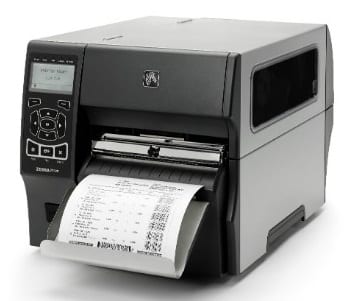

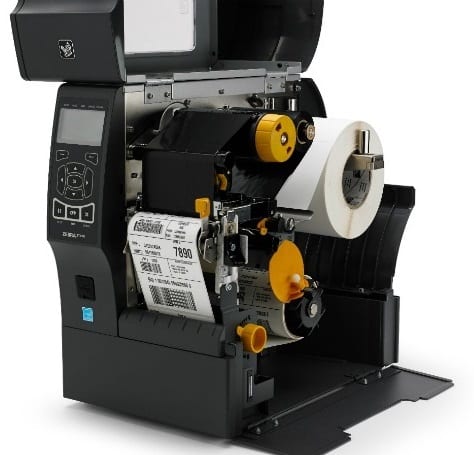

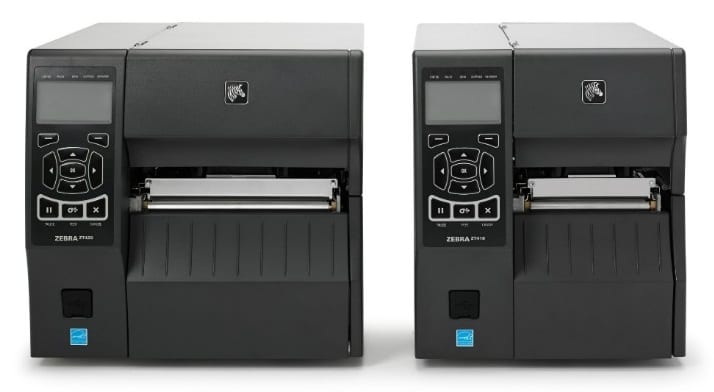

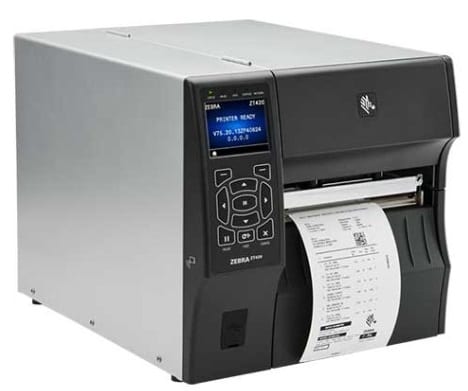

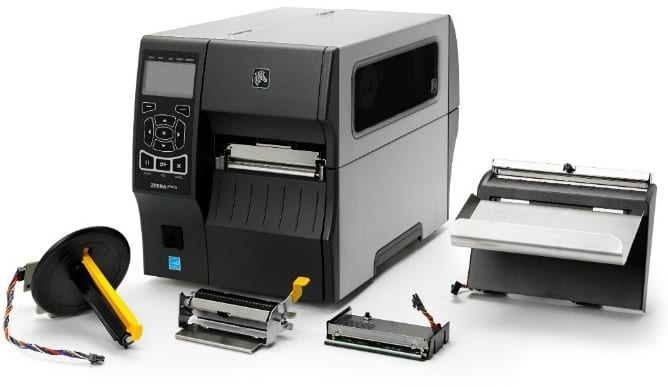

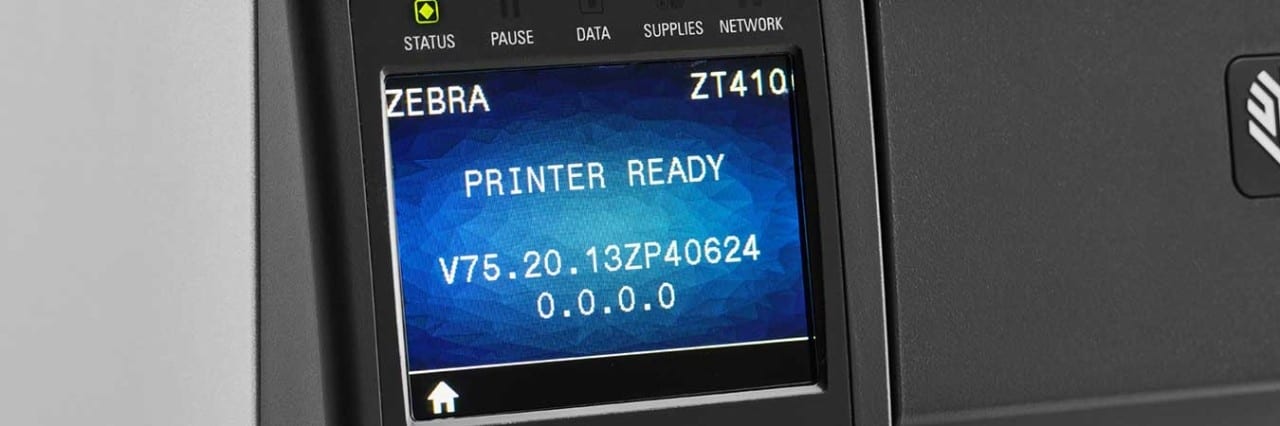

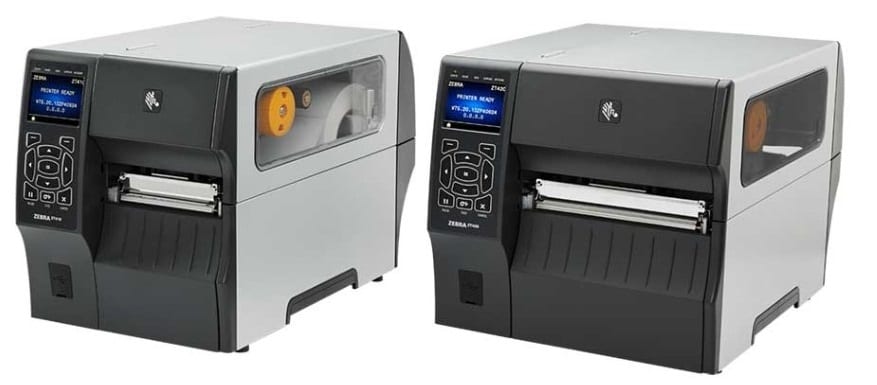

Zebra ZT420

The ZT420 is the 6-inch model of Zebra’s ZT400 Series, with 203 or 300 dpi printheads.
PRINT WIDTH : 6.6 inch / 168 mm
PRINT RESOLUTION : 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional)
MAXIMUM PRINT SPEED : Up to 12 ips/305 mm per second at 203 dpi (10 ips/254 mm at 300 dpi)
CONSTRUCTION : Metal frame and bi-fold metal media cover with enlarged clear viewing window
COMMUNICATION METHODS : Standard: USB 2.0 high-speed, RS-232 serial, 10/100 Ethernet, Bluetooth 2.1, USB host. Optional: parallel; 802.11a/b/g/n wireless; or dual radio with 802.11ac Wi-Fi and Bluetooth 4.1; dual USB host ports.
Request a quote

Zebra ZT420 datasheet and documents

Description Download
Zebra ZT420 support and downloads (Zebra Asia Pacific) Open Zebra ZT420 support and downloads on the maker's site (new tab)

Industries that use the Zebra ZT420 (Zebra’s ZT400 Series list)

  • Manufacturing
  • Healthcare
  • Transportation
  • Retail
  • Warehouse

What the Zebra ZT420 is used for

  • Work-in-Process
  • Product ID / Serial Number Labels
  • Shipping Labels
  • Receiving Labels
  • Asset Labels
  • Compliance Labels
