Reads marks, not just labels
Newland rates the NVH220 for laser-etched and dot-peened DPM codes as well as printed 1D and 2D barcodes, including QR, Data Matrix, PDF417, Micro QR and Aztec.
IIoT
Browse IIoT
IIoT
Browse IIoT
Newland · Industrial DPM barcode scanner

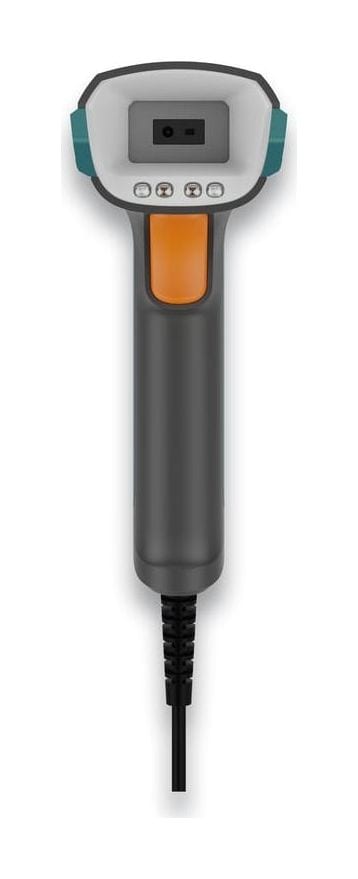

An IP64 industrial handheld that reads printed and direct part marked (DPM) codes, in corded and Bluetooth versions, for auto-component, electronics and healthcare production lines.
NVH220 Lophius AI price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland.
Already use one? Need service? Log a service call for the Newland NVH220 Lophius AI
Why the NVH220 Lophius AI
The NVH220 Lophius AI is Newland's industrial handheld for direct part marking: codes marked straight onto a part by laser or dot-peen. Allmark supplies two versions in India: the corded high-density NLS-NVH220-V2-HD and the Bluetooth Hyper High-Density NLS-NVH220B-HHD-C(U)-IN, which works with its cradle. Newland's India and Asia site lists the scanners as the NVH220 (corded) and NVH220B (Bluetooth).
Newland rates the NVH220 for laser-etched and dot-peened DPM codes as well as printed 1D and 2D barcodes, including QR, Data Matrix, PDF417, Micro QR and Aztec.
Both India versions have Newland's AI intelligent learning. AI barcode positioning improves decoding of low-contrast codes, and intelligent learning adjusts the settings to each scene. A dual-core decoding platform speeds up image capture.
The corded NVH220-HD has red and blue direct LEDs plus a white diffuse LED, so it copes with reflective materials, curved surfaces, varied backgrounds and coloured codes. It aims with a cross laser; the Bluetooth HHD version aims with a green LED.
IP64 sealing against dust and water spray. Newland rates the corded NVH220-HD for 2.4 m drops and operation from -20 °C to 50 °C.
The Bluetooth NVH220B-HHD reads Hyper High-Density codes and works up to 150 m from its cradle in line of sight, by Newland's figure for the NVH220B. Battery details are below.
The corded NVH220-HD offers USB, RS-232 and Ethernet. The Bluetooth HHD cradle has an RJ50 connector that supports USB, RS-232 and PS/2.
Used in
For buyers in India
These are the points buyers in India ask us about the NVH220 Lophius AI. Mention the ones that apply to you when you request a quote.
Check how your parts are marked before choosing the NVH220: Newland rates it for two DPM methods, laser-etched and dot-peened marks. Newland does not list inkjet or chemical-etch marks, so trial those on your own parts before buying. India's auto-component industry has large clusters around Chennai, Pune and the Gurgaon-Manesar-Bawal belt, where some parts carry codes marked straight onto metal or plastic. The corded NVH220-HD reads Data Matrix and QR down to 3 mil (2D) and 1D codes down to 1.85 mil. For the smallest marks, ask about the Hyper High-Density Bluetooth version.
Mount the NVH220B's cradle away from furnaces, ovens, heat-treatment lines and sun-heated roof sheets: Newland gives it a charging range of 0 °C to 45 °C. Newland rates the corded NVH220-HD to work from -20 °C to 50 °C, and its Bluetooth NVH220B from 0 °C to 50 °C. Humidity is rated 5-95% non-condensing, so a scanner carried from an air-conditioned inspection room into humid coastal air should be left to clear before use.
One NVH220B charge covers two 8-hour shifts (16 hours) with an hour to spare; a third shift needs a charged spare battery, a 3-hour cradle break, a second scanner or the corded version. Newland rates the NVH220B for at least 17 hours of continuous use, or up to 60,000 scans, on one charge, with a 3-hour recharge. A line running three 8-hour shifts needs 24 hours, which one charge cannot cover. Newland's datasheets describe a removable battery and its India and Asia site lists a spare (BTY-NVH220B-33). The 150 m range is a line-of-sight figure; presses, steel racks and walls between scanner and cradle shorten it. These are Newland's NVH220B figures; confirm them for the HHD version when you order.
Connect the corded NVH220 to a standard USB 2.0 port on a PC, not to a bus-powered hub. The scanner runs on 5 V DC ±5% and draws 300 mA typically and 450 mA at most. A standard USB 2.0 port on a PC supplies up to 500 mA, so the PC can power it directly. A bus-powered USB hub gives only 100 mA a port, which is not enough. For RS-232 and Ethernet set-ups Newland lists an AC adapter rated 100-240 V input, 5 V DC 1.5 A output. That covers India's 230 V and 240 V mains. For Ethernet to a PLC, Newland also lists the NLS-EX100-IN converter box.
Specifications
| Versions supplied in India | |
|---|---|
| Corded | NLS-NVH220-V2-HD: corded 2D industrial scanner, high density, megapixel, AI intelligent learning, cross laser aiming, grey and cyan housing |
| Bluetooth | NLS-NVH220B-HHD-C(U)-IN: 2D industrial Bluetooth scanner with cradle, Hyper High-Density, megapixel, AI intelligent learning, green LED aiming, grey and cyan housing; RJ50 connector supporting USB, RS-232 and PS/2 (no Ethernet) |
| Other Bluetooth versions Newland lists | NVH220B-HD (USB, RS-232) and NVH220B-XD (RS-232, TCP/IP, ModbusTCP, Ethernet/IP, Profinet, MELSEC/SLMP); ask us if you need one of these |
| General | |
| Notifications | Beep, LED, vibration |
| Certifications, NVH220-HD (corded) | CE, FCC, RoHS 2.0, IEC 60825-1, IEC 62471, KC, ISO 16750-5:2023, as listed by Newland for the NVH220-HD |
| Certifications, Bluetooth | Newland's NVH220B-HD datasheet lists CE, CCC, FCC, KC, RoHS 2.0, IEC 62471 and IEC 60825 (the NVH220B-XD adds ISO 16750); confirm for the HHD version |
| Scanning, corded NVH220-HD | |
| Image sensor | 1280 × 800 CMOS |
| Aiming | Crosshair laser, 650 nm |
| Illumination | Direct: red and blue LEDs; diffuse: white LED |
| 2D symbologies | QR Code, PDF417, Micro QR, Data Matrix, Aztec |
| 1D symbologies | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, AIM 128, GS1 Composite, GS1-128, ISBT 128, Code 11, MSI-Plessey, Plessey and others |
| DPM | Laser-etched and dot-peened codes |
| Minimum resolution | 1.85 mil (1D), 3 mil (2D) |
| Minimum symbol contrast | 15% |
| Depth of field | EAN-13 13 mil: 10-280 mm; Code 39 5 mil: 30-180 mm; Code 39 20 mil: 50-440 mm; Data Matrix 10 mil: 15-140 mm; QR 20 mil: 10-250 mm |
| Field of view | 42° horizontal, 28° vertical |
| Scan angles | Pitch ±50°, skew ±50°, roll 360° |
| Motion tolerance | 2 m/s |
| Scanning, Bluetooth NVH220B-HHD | |
| Reading | 2D industrial scanner, Hyper High-Density, megapixel, AI intelligent learning |
| Aiming | Green LED |
| Resolution, depth of field, field of view | Not published on Newland's India and Asia site for the HHD version; ask us for the datasheet |
| OCR | Optional on Newland's NVH220B (HD and XD datasheets) |
| Connectivity and power | |
| Interfaces, corded NVH220-HD | USB, RS-232, Ethernet; protocols USB CDC, USB HID keyboard, RS-232, TCP/IP, Ethernet/IP, Profinet, MELSEC/SLMP |
| Interfaces, Bluetooth NVH220B-HHD | RJ50 connector supporting USB, RS-232 and PS/2 |
| Wireless range (NVH220B) | Up to 150 m line of sight |
| Battery (NVH220B) | Removable 3.6 V, 3,350 mAh battery (spare part BTY-NVH220B-33); Newland gives at least 17 hours continuous use and up to 60,000 scans per charge |
| Charge time (NVH220B) | 3 hours; battery charging at 0 °C to 45 °C |
| Power, corded NVH220-HD | 5 VDC ±5%; 1,500 mW typical; 300 mA typical, 450 mA maximum |
| Physical and environment | |
| Scanner dimensions | 68 × 86 × 180 mm (Newland's NVH220 and NVH220B figure) |
| Cradle (NVH220B) | 103 × 127 × 123 mm, 217 g |
| Weight | Corded NVH220-HD: 160 g without cable. NVH220B: 218 g with battery |
| Housing | Grey and cyan (both India versions) |
| Sealing | IP64 (NVH220B cradle: IP42) |
| Drop | 2.4 m (corded NVH220-HD and Bluetooth NVH220B) |
| Operating temperature | Corded NVH220-HD: -20 °C to 50 °C. Bluetooth NVH220B: 0 °C to 50 °C |
| Storage temperature | Corded NVH220-HD: -40 °C to 70 °C. Bluetooth NVH220B: -20 °C to 70 °C |
| Humidity | 5-95%, non-condensing |
| ESD | ±16 kV air, ±8 kV direct |
| Software | |
| Configuration | Newland NSet |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland. |
Ask for RS-232 or USB cables, a stand, a wall bracket, a spare battery or the India Ethernet converter in the same quotation.
Specifications from Newland's published documents, last checked 9 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Newland NVH220 Lophius AI Bluetooth (NLS-NVH220B-HHD-C(U)-IN) | Newland NVH220 Lophius AI Corded (NLS-NVH220-V2-HD) | Newland HR42 Halibut HD Bluetooth (discontinued) | Newland NVH300 (V2) |
|---|---|---|---|---|
| Connection | Bluetooth, up to 150 m | Corded | Bluetooth 5.0, up to 30 m | Corded |
| Density | Hyper High-Density | High density (1.85 mil 1D, 3 mil 2D) | High density | DPM |
| Aiming | Green LED | Cross laser | Not stated | Not stated |
| Sealing | IP64 | IP64 | IP42 | IP64 |
| Weight | 218 g with battery (NVH220B) | 160 g without cable | 230 g | 245 g |
| Interfaces | RJ50: USB, RS-232, PS/2 | USB, RS-232, Ethernet | RS-232, USB | RS-232, USB |
| Best for | Cordless DPM reading across a line or cell | Fixed workstations and inspection benches | Existing users; Newland names the NVH220B as the replacement | DPM reading where a corded scanner with Ethernet suits the station |
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The NVH220 Lophius AI price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Both the NVH220 and the NVH300 are current Newland DPM scanners that Allmark supplies in India. The NVH220 comes as a corded high-density model and a Bluetooth Hyper High-Density model; the NVH300 is a corded DPM scanner. The HR42 Halibut HD Bluetooth is end-of-life, and Newland names the NVH220B (Bluetooth) as its replacement. Tell us the parts, the marking method and how the scanner should connect, and we will suggest the model.
Yes. Newland rates the NVH220 for laser-etched and dot-peened direct part marks, as well as printed labels. The corded NVH220-HD switches between red and blue direct light and white diffuse light to cope with shiny, curved or low-contrast surfaces. Include photos of your part marks when you ask for a quote, so we can recommend the right version.
Choose the corded NLS-NVH220-V2-HD for a fixed bench or inspection station: it weighs 160 g, aims with a cross laser and connects by USB, RS-232 or Ethernet. Choose the Bluetooth NLS-NVH220B-HHD-C(U)-IN when operators move around a cell or line, or when the codes are very small: it reads Hyper High-Density codes, aims with a green LED, and its cradle connects by USB, RS-232 or PS/2. Newland rates its NVH220B for up to 150 m from the cradle in line of sight and at least 17 hours of continuous use per charge.
The corded NVH220-HD offers Ethernet, and Newland lists TCP/IP, Ethernet/IP, Profinet and MELSEC/SLMP protocols for it. Newland also lists the NLS-EX100-IN box, which converts USB and RS-232 to industrial Ethernet, and an NVH220B-XD Bluetooth version with industrial protocols. The Bluetooth HHD version supplied in India connects by USB, RS-232 or PS/2 through its cradle, without Ethernet. Allmark integrates scanners with ERP, warehouse and production software and provides on-site installation and training. Tell us your PLC or software when you ask for a quote and we will help you check the connection.
Newland rates the scanner IP64, which covers dust and water spray. Both versions are rated for 2.4 m drops; the corded NVH220-HD works from -20 °C to 50 °C and the Bluetooth NVH220B from 0 °C to 50 °C. The Bluetooth cradle is rated IP42, so place it away from direct splashes. Newland does not rate the scanner for oil or coolant, so test it on your own line before a large order.
With Newland's free NSet software, which Newland's India and Asia site offers for the corded and Bluetooth scanners. Allmark can set the interface, prefixes and suffixes and the data format to suit your software during installation.
Yes. We install the NVH220 Lophius AI at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
