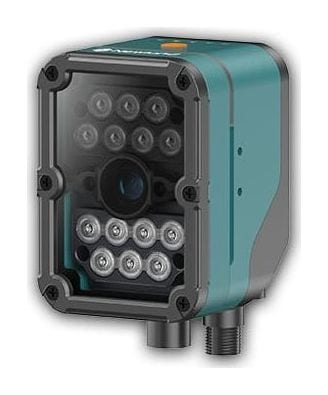

Newland · Industrial fixed-mount barcode scanner
An IP67 industrial fixed-mount scanner with a 2 MP or 5 MP sensor and liquid-lens autofocus, for conveyors, packing lines and production stations that send scans to a PLC, MES or PC.
Soldier300 price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland.
Already use one? Need service? Log a service call for the Newland Soldier300
Why the Soldier300
The Soldier300 is Newland's larger industrial fixed-mount scanner. It is bolted above or beside a conveyor or workstation and reads 1D and 2D codes as items pass. It comes in two series, the 2-megapixel Soldier300W and the 5-megapixel Soldier300E, each with wide-field and long-distance versions.
The Soldier300W uses a 1920 × 1200 sensor in wide-field, standard and long-distance versions (6, 9 and 15 mm lenses). The Soldier300E uses a 2592 × 1944 sensor in wide-field and long-distance versions. The smallest 1D code it resolves ranges from 1.67 mil down to 0.613 mil, depending on the version.
A liquid lens focuses automatically. The wide-field versions read from 50 mm, and the long-distance versions read out to 2,000 mm (W) or 3,000 mm (E), so one scanner can sit above tall cartons or close to a small part.
Newland rates motion tolerance at 3 m/s and minimum symbol contrast at 15%. A dual-core processor with an AI inference engine handles image processing, which helps with faded or low-contrast codes.
Fourteen high-intensity red LEDs with a half polariser come as standard, and the top and bottom lighting zones can be set separately. Soldier300W versions offer white, blue, ultraviolet or infrared LEDs as options, and a diffuser, full polariser and magnifier are sold as accessories.
Besides RS-232, TCP/IP, UDP and FTP, it supports Profinet, EtherNet/IP, Modbus TCP and MELSEC/SLMP. Two trigger inputs and two outputs (good read and no read) can start a scan from a photo-eye and drive a reject gate or a stack light.
The housing is sealed to IP67 and works from -20 °C to 50 °C. The cable connector turns, so the cable can leave the scanner horizontally or vertically to suit the mounting position.
Used in
For buyers in India
These are the points buyers in India ask us about the Soldier300. Mention the ones that apply to you when you request a quote.
The Soldier300 handles cement or flour dust and wet cleaning of a packing line, but do not aim a pressure washer at it. IP67 means it is dust-tight and survives immersion in 1 m of water for 30 minutes; IP67 is not a pressure-jet rating. It is rated to work down to -20 °C, which suits chilled rooms and frozen stores that stay at or above -20 °C. Humidity is rated 5-95% non-condensing: where a cold-room door opens into humid air, mount it where moisture does not settle on the window. Newland publishes no drop or impact rating, so guard it from forklifts and falling cartons.
Measure the air at the mounting point before you fix the Soldier300's bracket: next to ovens, shrink tunnels, sealers or a sun-heated tin roof, it can be hotter than the weather. Newland rates the scanner to work up to 50 °C and to be stored from -40 °C to 70 °C.
A cabinet 24 V supply must have 1 A spare for each Soldier300E. The scanner runs on 24 V DC. At 24 V it draws at most 333 mA (W) or 1,000 mA (E): 24 × 0.333 = 8 W and 24 × 1.0 = 24 W. Newland's AD36-DB-B adapter gives 24 V at 1.5 A (36 W) from 100-240 V AC. That covers India's 230 V and 240 V mains.
The Soldier300 reads codes on fast parcel, carton and bottle lines and can signal a reject arm or stack light. Its motion tolerance of 3 m/s equals 180 m per minute. Its two outputs signal good read and no read, rated 50 mA per channel and up to 30 V, enough to drive a relay for a reject arm or a stack light. Over Ethernet it speaks Profinet, EtherNet/IP, Modbus TCP and MELSEC/SLMP, so it can report to the line PLC without a converter.
Specifications
| General | |
|---|---|
| Versions and part numbers | Soldier300W (2 MP): NLS-Soldier300W-W wide field, NLS-Soldier300W-N standard field, NLS-Soldier300W-S long distance. Soldier300E (5 MP): NLS-Soldier300E-W wide field, NLS-Soldier300E-S long distance |
| Indicators | Buzzer and pilot lamp; status LEDs for power, auto-learning, focus, error and network |
| Button | One button: long press 3 s for focus and auto-learning, 9 s for barcode programming; short press to trigger a read |
| Certifications | CE, FCC, RoHS 2.0, IEC 60825-1, IEC 62368, IEC 62471, KC |
| Scanning | |
| Image sensor | CMOS. Soldier300W: 1920 × 1200 pixels. Soldier300E: 2592 × 1944 pixels |
| Focus | Liquid lens |
| Effective focal length | Soldier300W: 6 mm (W), 9 mm (N), 15 mm (S). Soldier300E: 6 mm (W), 15 mm (S) |
| Illumination | 14 high-intensity red LEDs, standard. Soldier300W optional: white, blue, ultraviolet or infrared LEDs |
| Polarising filter | Half polariser, standard; full polariser optional |
| Aiming | Two circular laser dots; red laser 645-658 nm, Class 2, output under 1.0 mW |
| 1D symbologies | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, Code 11, MSI-Plessey, Plessey, Deutsche 14, Deutsche 12 and others |
| 2D symbologies | QR Code, Data Matrix, PDF417, Aztec Code, Micro QR and others |
| Minimum resolution | Soldier300W: 1D 1.67 mil (W), 1 mil (N), 0.8 mil (S); 2D 3.33 mil (W), 2.5 mil (N), 2 mil (S). Soldier300E: 1D 0.8 mil (W), 0.613 mil (S); 2D 1.4 mil (W), 0.8 mil (S) |
| Reading distance | Soldier300W-W and -N: 50-1,000 mm; Soldier300W-S: 100-2,000 mm. Soldier300E-W: 50-1,000 mm; Soldier300E-S: 100-3,000 mm |
| Motion tolerance | 3 m/s |
| Minimum symbol contrast | 15% |
| Connectivity | |
| Communication | RS-232, TCP/IP, UDP, FTP, Modbus TCP, EtherNet/IP, Profinet, MELSEC/SLMP |
| Connectors | Data connector (RS-232, I/O and power) and Ethernet connector; the connector turns for horizontal or vertical cable exit |
| Inputs | 2 trigger inputs; minimum ON voltage ±5 V, maximum rated voltage ±30 V |
| Outputs | 2 outputs (good read, no read); 50 mA per channel; maximum OFF-state voltage ±30 V |
| Power | 24 V DC. Operating current at 24 V: 333 mA max (Soldier300W), 1,000 mA max (Soldier300E); standby 90 mA |
| Adapter | AD36-DB-B: 24 V DC, 1.5 A output; 100-240 V AC input |
| Physical and environment | |
| Dimensions | 61 × 57.6 × 101.83 mm (W × D × H) |
| Weight | 420 g |
| Mounting | Fixed bracket; M3 mounting holes on the housing |
| Sealing | IP67 |
| Operating temperature | -20 °C to 50 °C |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing |
| ESD | ±16 kV air, ±8 kV contact |
| Software | |
| Configuration | Newland NSet: focusing, auto-learning and testing in three steps; device grouping, configuration library, multi-code sorting, barcode verification and scripting |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland. |
Ask for the power adapter, cables and optical accessories in the same quotation.
Specifications from Newland's published documents, last checked 9 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Newland Soldier300 | Newland Soldier180 | Newland NVH220 (corded handheld) |
|---|---|---|---|
| Type | Fixed mount | Fixed mount | Handheld |
| Image sensor | 1920 × 1200 (W) or 2592 × 1944 (E) | 1280 × 960 (W) or 1600 × 1200 (E) | 1280 × 800 |
| Reading distance | 50-1,000 mm up to 100-3,000 mm, by version | 40-1,000 mm up to 40-2,000 mm, by version | 10-280 mm (EAN-13, 13 mil) |
| Minimum resolution (1D) | 0.613-1.67 mil, by version | 0.613-1 mil, by version | 1.85 mil |
| Motion tolerance | 3 m/s | 2 m/s | 2 m/s |
| Minimum symbol contrast | 15% | 25% | 15% |
| Sealing | IP67 | IP65 | IP64 |
| Size | 61 × 57.6 × 101.83 mm | 45 × 59.2 × 25 mm | 68 × 86 × 180 mm |
| Weight | 420 g | 185 g | 160 g without cable |
| Power | 24 V DC; 333 mA (W) or 1,000 mA (E) max | 24 V DC; 200 mA max | 5 V DC; 450 mA max |
| Best for | Long reading distances, fine codes and fast lines | Tight spaces inside machines and stations | Operators who scan by hand at a bench |
If your job differs from what the Soldier300 is built for, these Newland models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The Soldier300 price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Both share the same IP67 housing, interfaces and 24 V power. The Soldier300W has a 2-megapixel sensor (1920 × 1200), three field versions and optional white, blue, ultraviolet or infrared lighting. The Soldier300E has a 5-megapixel sensor (2592 × 1944) that resolves finer codes, down to 0.613 mil 1D, and reads out to 3,000 mm in its long-distance version. It draws up to 1,000 mA at 24 V against 333 mA for the W.
Choose by distance and code size. The wide-field versions (6 mm lens) read from 50 mm and see a wider area, which suits large labels close to the scanner. The long-distance versions (15 mm lens) read from 100 mm to 2,000 mm (W) or 3,000 mm (E), which suits a scanner mounted high above cartons of different heights. Send us your code size, distance and line speed with your enquiry.
Yes. The Soldier300 has a separate Ethernet connector that carries Profinet, EtherNet/IP, Modbus TCP and MELSEC/SLMP, as well as TCP/IP, UDP and FTP; RS-232 runs through its data connector. On the same data connector, two trigger inputs (rated up to ±30 V) accept a photo-eye or PLC signal, and two outputs report good read and no read at up to 50 mA each. Tell us your PLC model when you ask for a quote.
A 24 V DC supply that can deliver up to 333 mA (Soldier300W) or 1,000 mA (Soldier300E). Newland sells a 24 V, 1.5 A adapter (AD36-DB-B), a 3 m cable from the data connector to DB9, I/O and DC power, and a 10 m Ethernet cable. The connector turns so the cables can leave horizontally or vertically, and the housing has M3 mounting holes for the bracket. The frame ground wire must be earthed.
The Soldier180 is smaller and lighter (45 × 59.2 × 25 mm, 185 g), sealed to IP65, and fits inside machines and narrow stations. The Soldier300 is larger (420 g) and sealed to IP67, with 2 MP or 5 MP sensors, 3 m/s motion tolerance against 2 m/s, a lower 15% minimum contrast and a reading distance of up to 3,000 mm. Both use 24 V DC and the same industrial protocols.
Yes. We install the Soldier300 at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
