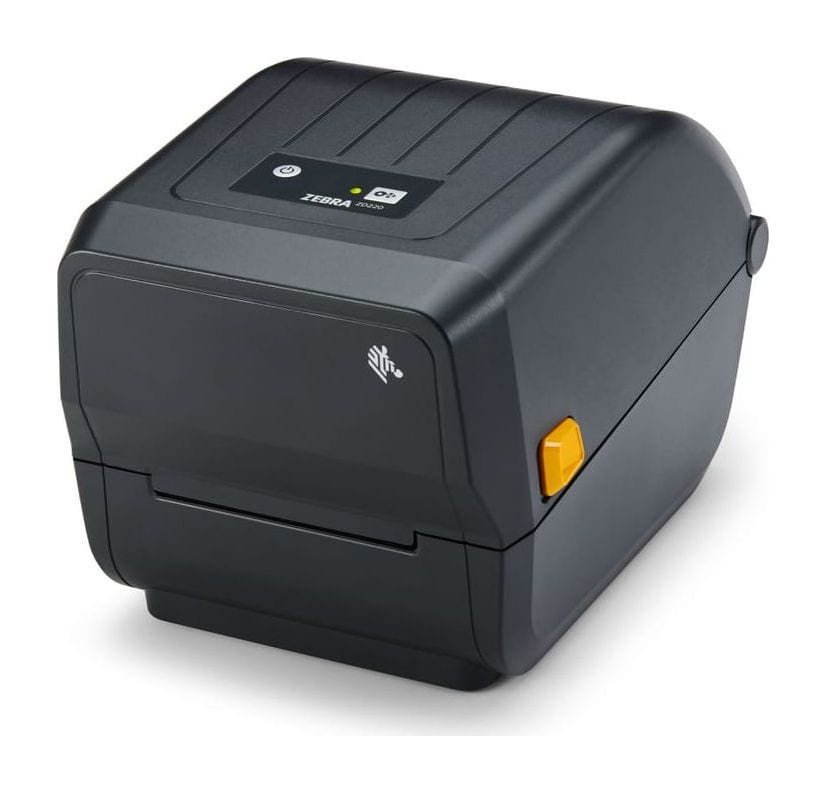

Zebra · Desktop barcode label printer
Zebra's 4-inch, 203 dpi value desktop printer, in direct thermal or thermal transfer versions, for shelf, price, shipping and asset labels printed over USB at one desk.
ZD220 price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra ZD220
Why the ZD220
The ZD220 is the 4 ips, USB-only model of Zebra's ZD200 Series; the ZD230 is the faster model with network options. Zebra builds the ZD220 as a direct thermal or a thermal transfer printer, and Zebra Asia Pacific lists it as replacing the GC420d and GC420t.
The direct thermal ZD220 needs no ribbon. The thermal transfer ZD220t takes 74 m ribbons, 33.8 to 109.2 mm wide on a 12.7 mm core, for labels that must last longer.
It accepts ZPL II, EPL2 and XML, and EPL1 line mode on the direct thermal model, so formats from older Zebra desktops such as the GC420 usually need no rework. Zebra's spec sheet calls its software Print DNA, and lists on-printer apps that run languages associated with other printer brands. Test one label first.
Zebra's OpenACCESS clamshell opens for media changes, a feed slot takes fan-fold labels, and one status light and one feed/pause button cover daily use.
Zebra builds the ZD220 with a dual-wall frame for durability, and lists it as ENERGY STAR qualified.
Zebra lists die-cut and continuous labels, tag stock and continuous receipt paper, 25.4 to 112 mm wide, on rolls up to 127 mm across or fan-folded.
Tear-off is standard; Zebra offers a factory-installed peeler for label-by-label dispensing, so decide on it before you order.
Used in
For buyers in India
These are the points buyers in India ask us about the ZD220. Mention the ones that apply to you when you request a quote.
The ZD220 prints up to 104 mm wide on media up to 112 mm, so a 4 × 6 inch (101.6 × 152.4 mm) courier label fits. At 102 mm/s (4 ips) one such label takes about 1.5 s. Choose the direct thermal model for courier dispatch, so the desk stocks only labels.
The ZD220 prints at 8 dots per mm, with EAN-13 and QR Code on the same label. For retail packs, ask us to set up the MRP, net-quantity and price lines in your label format and print test labels on your roll.
Zebra rates the ZD220 to run from 4.4 °C to 41 °C at 10-90% humidity, non-condensing. Keep it out of direct sun and hot, unventilated stockrooms.
Zebra rates its power input at 100-240 VAC, 50-60 Hz, auto-detected. Plug it into a UPS or stabiliser where the mains supply is unsteady.
Specifications
| General | |
|---|---|
| Versions | Direct thermal; thermal transfer (ZD220t) |
| Operating system | Link-OS Basic |
| Memory | 128 MB Flash, 128 MB SDRAM (50 MB user non-volatile, 8 MB user SDRAM) |
| Printer languages | ZPL II, EPL2, XML; EPL1 line mode on the direct thermal model |
| Controls | Single LED status indicator, single feed/pause button |
| Construction | Dual-wall frame; OpenACCESS clamshell for media loading |
| Real-time clock | None |
| Software | Print DNA Basic: Zebra Setup Utilities, ZebraDesigner Essentials (free download), printer emulations; Windows drivers |
| Printing | |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print width | 104 mm (4.09 in.) |
| Print speed | 102 mm/s (4 ips) |
| Maximum print length | 991 mm (39 in.) |
| Sensors | Movable black mark sensor (limited range, centre to left side); fixed off-centre gap sensor; head-up sensor |
| Fonts | 16 resident expandable ZPL II bitmap fonts, 2 resident scalable ZPL fonts, 5 resident expandable EPL2 fonts; native OpenType support; Unicode for multi-language printing |
| 1D barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code; bar code ratios 2:1 and 3:1 |
| 2D barcodes | Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Media and ribbon | |
| Media width | 25.4-112 mm (1.00-4.4 in.) |
| Label length | Up to 991 mm (39 in.) |
| Maximum roll diameter | 127 mm (5 in.) outside diameter |
| Core size | 12.7 mm (0.5 in.) and 25.4 mm (1 in.) standard; 38.1 mm (1.5 in.) with optional adapters |
| Media thickness | 0.08-0.1905 mm (tear-off mode only) |
| Media types | Roll-fed or fan-fold; die-cut or continuous, with or without black mark; tag stock; continuous receipt paper; wristbands |
| Ribbon (ZD220t only) | 74 m, 34 mm (1.34 in.) outside diameter, 12.7 mm (0.5 in.) core, 1:1 ribbon to media; width 33.8-109.2 mm (1.33-4.3 in.) |
| Media handling | Tear-off standard; factory-installed peeler option |
| Connectivity | |
| Standard | USB 2.0 (full speed, bi-directional, Type B) |
| Network options | None listed by Zebra for the ZD220; the ZD230 offers Ethernet, Bluetooth or Wi-Fi as factory options |
| Physical and environment | |
| Dimensions (L × W × H) | Thermal transfer 267 × 197 × 191 mm; direct thermal 220 × 176 × 151 mm |
| Weight | Thermal transfer 1.7 kg; direct thermal 1.1 kg |
| Electrical | Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz; ENERGY STAR qualified |
| Operating temperature | 4.4 °C to 41 °C |
| Storage temperature | -40 °C to 60 °C |
| Humidity | 10-90% operating, 5-95% storage, non-condensing |
| Regulatory (as listed by Zebra) | Includes IEC 60950-1, FCC Class B, CE Marking, cTUVus, VCCI, C-Tick, CCC, BSMI, KCC |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
Ask for the peeler and core adapters, and for labels and ribbons, in the same quotation; the peeler is fitted at the factory, so decide on it before you order.
Specifications from Zebra's published documents, last checked 20 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
More detail
Zebra ZD200 Series (ZD220) Desktop Printers
Printer Model : ZD220 Direct Thermal/Thermal Transfer Desktop Printer
These printers have dual-wall construction. They are simple to install and begin printing, right out of the box.
Firmware : ZPL II; EPL 2
Programming Languages : ZPL and EPL
Communications : USB 2.0 (Standard)
Print Width : 4.09 in./104 mm
Print Speed : Up to 4 in./102 mm per second (203 dpi)
Print Resolution : 203 dpi/8 dots per mm
Others : And, they’re ENERGY STAR qualified to reduce operational expenses.
Shelf and Product Labels
Price Labels
Shipping Labels
Receiving Labels
Asset Labels
Compare
| Feature | Zebra ZD220 | Zebra ZD230 | Zebra ZD421 |
|---|---|---|---|
| Resolution | 203 dpi | 203 dpi; 300 dpi option on ZD230TA/DA | 203 or 300 dpi |
| Maximum print speed | 102 mm/s (4 ips) | 152 mm/s (6 ips) | 152 mm/s (6 ips) at 203 dpi |
| Memory | 128 MB Flash, 128 MB SDRAM | 128 MB Flash, 128 MB SDRAM (ZD230); 8 MB Flash (TA/DA) | 512 MB Flash, 256 MB SDRAM |
| Connectivity | USB 2.0 | USB; Ethernet, Bluetooth or Wi-Fi as factory options on the ZD230 | USB, USB Host; Ethernet or Wi-Fi optional |
| Ribbon (thermal transfer model) | 74 m | 300 m or 74 m | 300 m or 74 m roll; 74 m cartridge |
| Best for | Basic USB labelling at one desk | Faster printing, or a printer on the network | 300 dpi labels, or adding a network later |
If your job differs from what the ZD220 is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The ZD220 price depends on the options you add and the quantity. We can quote the labels and ribbon with it. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Both are 4-inch, 203 dpi Zebra ZD200 Series printers with 128 MB Flash. The ZD220 prints at up to 102 mm/s (4 ips) over USB only and takes 74 m ribbons. The ZD230 prints at up to 152 mm/s (6 ips), takes 300 m or 74 m ribbons, and Zebra builds it with Ethernet, Bluetooth or Wi-Fi as factory options. Choose the ZD230 if several people share the printer or it must sit on the network.
Yes. Zebra no longer sells the GC420 (last sale 30 April 2020, support ended 30 June 2023, Asia Pacific dates) and names the ZD200 Series as its successor; its Asia Pacific ZD220 page says the ZD220 replaces the GC420d and GC420t. For the GT800 (last sale 31 January 2020, support ended 31 March 2023), Zebra lists the ZD220, ZD421 or ZD621. The ZD220 connects over USB only, so tell us if your old printer used its serial or parallel port.
No. Zebra lists USB 2.0 as the ZD220's only interface. For a network printer choose the ZD230, which Zebra builds with Ethernet, Bluetooth or Wi-Fi with Bluetooth, or the ZD421, where Zebra offers network options.
Only 74 m ribbons: 34 mm outside diameter on a 12.7 mm core, 33.8 to 109.2 mm wide, used 1:1 with the media. If you print long runs and want fewer ribbon changes, the ZD230t also takes 300 m ribbons. Tell us your label width and we quote the matching ribbon.
Usually. The ZD220 runs ZPL II, EPL2 and XML, and the direct thermal model also runs EPL1 line mode, so formats from older Zebra desktops such as the GC420 normally print unchanged. Tell us which software prints your labels, and print one test label before a rollout.
Yes. We install the ZD220 at your site, connect it so your ERP, warehouse or billing software prints to it (our own warehouse management system included) and train the people who use it. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send your label size, how many labels you print a day and the software you print from; we reply with a written quotation.
