Zebra · Cordless ultra-rugged extended-range 1D barcode scanner
A cordless 1D linear imager for warehouses and forklifts: Zebra rates it to read 1D barcodes from 5.1 cm out to 17.1 m, with a PowerPrecision+ 3,100 mAh battery and Bluetooth Class 1 to a Zebra cradle. It reads 1D barcodes only; the corded version is the LI3608-ER.
Zebra LI3678-ER price in India: on written quotation. Share the model, quantity and city; we reply within one working day (Monday to Saturday, 9:30 AM to 6:30 PM).
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra.
Already use one? Need service? Log a service call for the Zebra LI3678-ER

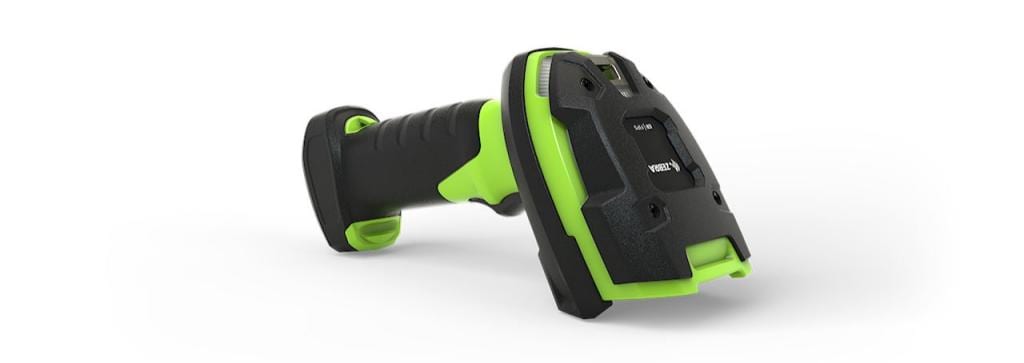

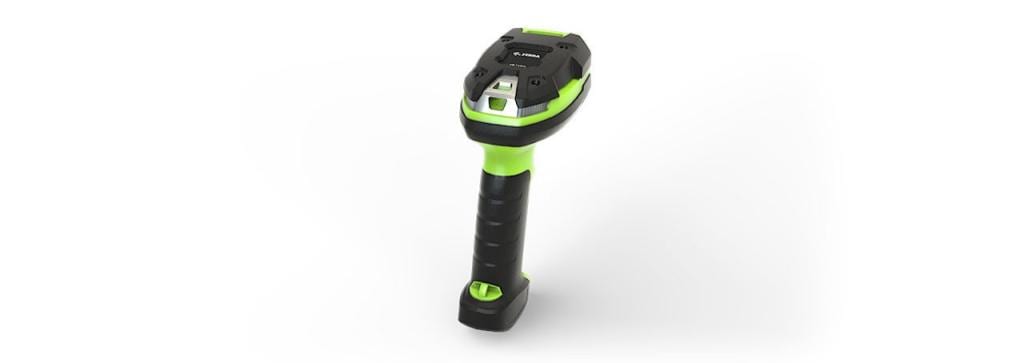

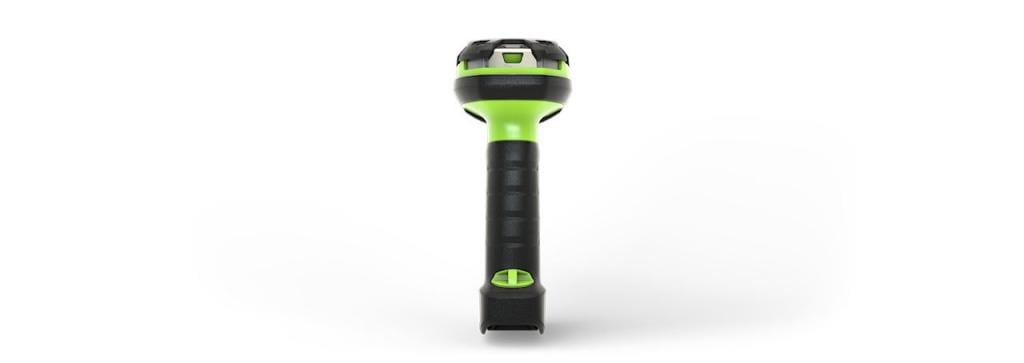

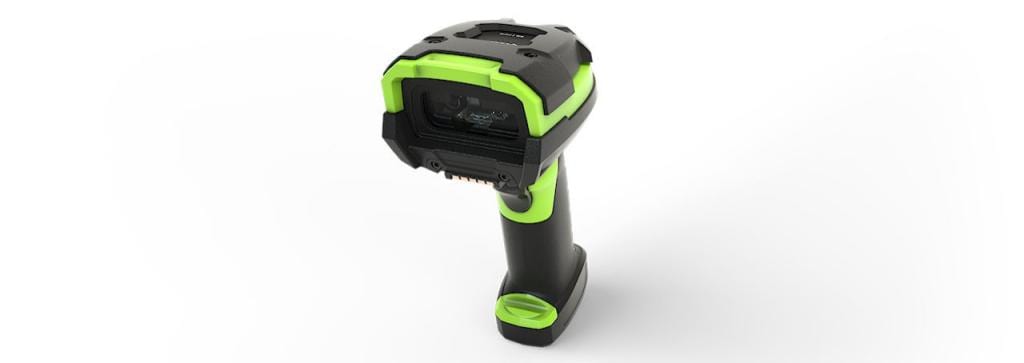

Photos
Why the LI3678-ER
The LI3678-ER is the cordless, extended-range model of Zebra's LI3600 ultra-rugged linear imagers. It reads 1D barcodes from a carton in the hand to a location label on the top rack, runs on a PowerPrecision+ battery, and talks to a Zebra cradle or host over Bluetooth. If the scanner stays at one station or works below -20 °C, the corded LI3608-ER fits better; for QR or Data Matrix codes, look at the DS3600 scanners.
Zebra lists a 10 mil Code 39 from 5.1 cm to 177.8 cm and a 100 mil Code 39 from 50.8 cm to 1,727.2 cm. A driver can read a rack label from the forklift and a carton label in the hand with the same scanner.
The PowerPrecision+ 3,100 mAh battery gives 100,000+ scans per full charge (Zebra spec sheet and reference guide). A battery charge gauge and Bluetooth status LED on the scanner, and battery health data in Zebra's tools, show when a battery needs replacing.
Bluetooth Class 1 reaches at least 100 m line of sight in open air. In Out of Range Batch Mode the scanner stores scans while out of range and sends them when it reconnects, and Virtual Tether alerts the worker when the scanner goes beyond Bluetooth range or stays out of the cradle for a set time. Batch mode does not apply in SPP peripheral mode.
Zebra rates the scanner for multiple 3.0 m drops to concrete at room temperature, multiple 2.4 m drops from -20 °C to 50 °C, 7,500 tumbles at 1.0 m and IP65 and IP68 sealing. The FLB3678 cradle is sealed to IP65, and the charging contacts are rated for 250,000+ insertions.
With AutoConfig the settings live in the cradle, so a scanner paired to a different cradle takes that host's settings, for example from the forklift to the shipping desk. Allmark sets up the cradles and connects them to your billing, ERP or warehouse software.
Used in
For buyers in India
These are the points buyers in India ask us about the LI3678-ER. Mention the ones that apply to you when you request a quote.
Zebra's 3600 Series accessory guide lists BTRY-36IAB0E-00K as the spare battery for the DS3678 and LI3678 sold in India and Korea only, and its LI36X8 reference guide lists an India and Korea configuration of the LI3678-ER. We confirm availability and both codes in the quotation.
Zebra's reference guide gives up to three hours for a full charge on external power and up to ten hours on USB power, at 0 °C to 40 °C (5 °C to 35 °C ideal). For back-to-back shifts, ask for the 12 V supply or a four-slot spare battery charger.
The cordless LI3678-ER is rated from -20 °C to 50 °C; the corded LI3608-ER goes down to -30 °C. For forklifts that run in and out of cold rooms, Zebra recommends its heated scanner holder to keep condensation off the scan window.
Specifications
| General | |
|---|---|
| Models | LI3678-ER (cordless); LI3608-ER (corded, separate page) |
| Connectivity | Wireless |
| Decoder | 1D |
| Colour | Industrial Green |
| Battery | PowerPrecision+ 3100mAh Li-Ion Rechargeable |
| Scans per full charge | 100,000+ |
| User indicators | Direct decode indicator, LEDs, beeper, vibration; battery charge gauge and Bluetooth status LED |
| Scanning | |
| Scan Pattern | Linear imager (2,496 pixels); illumination 660 nm LED; aimer 655 nm laser |
| Aim pattern | Three central dots with two lines on the left and right (laser) |
| Field of view | 30.7° horizontal |
| Scan speed | 55 scans per second (Zebra reference guide) |
| Motion tolerance | 63.5 cm per second |
| Symbol Contrast | 1D Codes: 25% minimum reflectance difference |
| Skew / pitch / roll | ±65° / ±65° / ±45° |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| Range: Code 39 7.5 mil | 7.6 cm to 71.2 cm |
| Range: Code 39 10 mil | 5.1 cm to 177.8 cm |
| Range: Code 128 15 mil | 12.7 cm to 215.9 cm |
| Range: Code 39 20 mil | 7.62 cm to 355.6 cm |
| Range: Code 39 55 mil | 15.24 cm to 889.0 cm |
| Range: Code 39 100 mil | 50.8 cm to 1,727.2 cm |
| Range: Code 39 100 mil reflective | 76.2 cm to 1,981.2 cm |
| Wireless and cradle | |
| Interface | Bluetooth Class 1 (v4.0 LE) to the STB3678 or FLB3678 cradle or a Bluetooth host; cradle host interfaces USB, RS232, keyboard wedge; EtherNet/IP, PROFINET and Modbus TCP through Zebra Network Connect |
| Bluetooth radio | Bluetooth Class 1, version 4.0 (LE); serial port (SPP) and HID profiles |
| Radio range | Class 1: minimum 100 m line of sight in open air; Class 2: minimum 10 m |
| Data rate | 3 Mbit/s (2.1 Mbit/s) Classic Bluetooth; 1 Mbit/s (0.27 Mbit/s) Low Energy |
| Cradles | STB3678 standard cradle; FLB3678 IP65 sealed cradle; both charge the scanner and connect over Bluetooth |
| Cradle host interfaces | Keyboard wedge, RS-232, USB, IBM 468X/469X (Zebra reference guide) |
| Cradle power | Host powered 4.5-5.5 V DC; external power supply 11.4-12.6 V DC |
| Charging | Full charge up to 3 hours on external power, up to 10 hours on USB power; charging 0 °C to 40 °C nominal, 5 °C to 35 °C ideal |
| Batch mode | Out of Range Batch Mode stores scans while the scanner is out of range and sends them on reconnection (9,000 bytes of memory) |
| Physical and environment | |
| Dimensions (H × W × D) | 18.5 × 7.7 × 14.2 cm |
| Weight | 424 g (with battery) |
| IP Rating | Scanner IP65 and IP68; FLB cradle IP65 |
| Operating Temperature | -20 °C to 50 °C |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop withstand | Multiple 3.0 m (10 ft) drops to concrete at room temperature; multiple 2.4 m (8 ft) drops from -20 °C to 50 °C |
| Tumble withstand | 7,500 tumbles at 1.0 m (3.3 ft) |
| Cradle insertions | 250,000+ |
| ESD | ±25 kV air, ±10 kV direct, ±10 kV indirect discharge (EN 61000-4-2) |
| Ambient light | 0 to 107,639 lux (direct sunlight) |
| Regulatory | |
| Environmental | RoHS EN 50581: 2012 |
| Laser/LED safety | IEC/EN 60825-1: 2007 and/or IEC/EN 60825-1: 2014; 21 CFR 1040.10 and 1040.11 |
| Electrical safety | EN 60950-1; IEC 60950-1; UL 60950-1; CAN/CSA-C22.2 No. 60950-1-07 |
| Software | |
| Utilities | 123Scan, Scanner SDK, Scanner Management Service (SMS), Network Connect |
| Cordless features | AutoConfig (settings stored in the cradle), Virtual Tether, Wi-Fi Friendly Mode, PowerPrecision+ battery health data |
| Suite | Zebra DNA for Scanners, including ScanSpeed Analytics and Remote Diagnostics; Simple Setup Experience by phone |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Zebra. |
Accessory names are from Zebra's LI36X8 Product Reference Guide (August 2025), the heated holder from the spec sheet footnote; the battery code is from Zebra's 3600 Series accessory guide. Tell us the host, the shift pattern and whether the cradle goes on a vehicle, and we list the cradle, cables and supplies in one quotation.
Specifications from Zebra's published documents, last checked 20 October 2026. Makers can change specifications without notice. About our product information
More detail
Extended-range 1D scanning, from codes in hand to the top rack.
The LI3678-ER (cordless) and LI3608-ER (corded) are Zebra's extended-range linear imagers for the warehouse. Zebra's spec sheet rates them to capture virtually any 1D barcode, printed on a label or shown on a screen, from as close as 2 in./5.1 cm to as far as 56 ft./17.1 m away, so workers can capture codes in hand as well as on the uppermost warehouse racks.
The Zebra LI3678 ER 1D Scanner is used for: codes on the uppermost warehouse racks; codes in hand, including extra-wide codes; 1D codes on labels or screens; shrink-wrapped, damaged or poorly printed labels; forklift and shipping work; and indoor, outdoor and freezer use.
Compare
| Feature | Zebra LI3678-ER | Zebra LI3678-SR | Zebra DS3678-SR |
|---|---|---|---|
| Scan engine | Linear imager, 2,496 pixels; 655 nm laser aimer | Linear imager, 1,500 pixels; two 617 nm amber LEDs | Area imager, 1,280 × 800 |
| Reads | 1D only | 1D only | 1D and 2D, including QR and Data Matrix |
| Range on Zebra's spec sheet | Code 39 10 mil: 5.1 cm to 177.8 cm; 100 mil: up to 1,727.2 cm | UPC 13 mil: 2.5 cm to 78.7 cm; Code 39 20 mil: up to 106.7 cm | Code 128 40 mil: up to 152.4 cm |
| Scans per full charge | 100,000+ | 140,000+ (spec sheet) | 100,000+ |
| Weight with battery | 424 g | 386.5 g | 407 g |
| Best for | Cordless 1D scanning from in-hand cartons out to the top rack | Cordless 1D scanning at arm's length: pick lists and cartons | Cordless sites that also need QR, Data Matrix or other 2D codes |
If your job differs from what the LI3678-ER is built for, these Zebra models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Part numbers
Quote the part number for your LI3678-ER in your enquiry and we confirm the exact part. These are Zebra's own codes; if you do not have yours, send a photo of the device's rating label.
| Part number | What it is | Ask about this part |
|---|---|---|
| BTRY-36IAB0E-00K | Spare Battery, DS/LI 3678 - India, Korea Only | Ask on WhatsApp about BTRY-36IAB0E-00K (opens in a new tab) |
Part numbers as published by Zebra, checked in Zebra's published documents on 10 October 2026. Parts and printer configurations available in India can change; we confirm the exact code and the delivery time in your quotation. About our product information
Downloads
Questions buyers ask
The LI3678-ER price depends on the cable or accessories you need and the quantity. We do not publish prices: share the model, quantity and city, and we send a written quotation with current pricing and delivery time, replying within one working day.
Zebra's spec sheet table and reference guide give 100,000+ scans per full charge from the PowerPrecision+ 3,100 mAh battery. A full charge takes up to three hours on external power. For multi-shift work, add a spare battery and Zebra's four-slot spare battery charger.
Bluetooth Class 1 reaches at least 100 m line of sight in open air. With Out of Range Batch Mode switched on, the scanner stores scans while out of range and sends them when it reconnects; Zebra gives 9,000 bytes of memory for stored codes. Virtual Tether can alert when the scanner goes beyond range or stays out of the cradle for a set time. Batch mode does not apply in SPP peripheral mode.
Both charge the scanner and link it to the host over Bluetooth, with USB, RS-232, keyboard wedge or IBM 468X/469X on the host side. The FLB3678 is sealed to IP65 and has its own mounting plate, so we suggest it for dusty or wet areas and mounted use; the STB3678 suits a desk or bench.
Zebra lists serial port (SPP) and HID Bluetooth profiles, so it can pair with a Bluetooth host as well as with a Zebra cradle. Tell us the device and the app, and we check the pairing mode before we quote.
Zebra names the LI3678 as the replacement for the LS3578-ER. Zebra's LI36X8 reference guide says cables made for the LS3578 do not fit the new scanners, so plan new cradles and cables. We can quote the full set for each station.
Yes. We install the LI3678-ER at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
