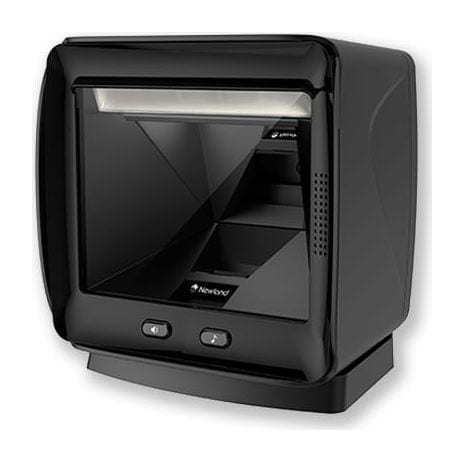

Newland · On-counter 1D/2D barcode scanner
A corded on-counter scanner with a large scan window for supermarket and convenience-store checkouts that scan many items an hour.
FR80 price in India: ask our team for today's competitive price. Share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland.
Already use one? Need service? Log a service call for the Newland FR80
Why the FR80
The FR80 is a Newland on-counter scanner for supermarkets, convenience stores and tobacco and alcohol counters. The cashier passes goods across a large window instead of picking up a scanner.
Newland describes a large scan window to suit goods of different sizes, and the scanner reads in sense mode, starting a read when a code comes into view. A 13 mil EAN-13 reads from 0 to 140 mm in front of the window.
Newland gives a motion tolerance of 350 cm/s, so items can be moved across the window without stopping. A code left in the window is not read again until it is taken away and shown again.
A 1280 × 1088 sensor with red LED illumination and Newland's UIMG and AIBD decoding is meant for wrinkled, reflective and curved barcodes. It reads 1D codes down to 3 mil, and codes with as little as 15% symbol contrast.
A second RJ45 port connects a handheld scanner over RS-232, powered from the FR80. Bulky goods can then be scanned with the handheld while both feed one cable to the POS. This needs a 5 V power adapter; ask for it in the quotation.
Six kinds of status indication show decoding, configuration, communication and fault states. Keys on the front set the beep sound and volume to suit a noisy or quiet store.
The main RJ45 port connects to the POS by USB (keyboard, virtual COM or HID-POS) or RS-232. Without the adapter, the scanner can run from USB power, but then the handheld port is not available.
Used in
For buyers in India
These are the points buyers in India ask us about the FR80. Mention the ones that apply to you when you request a quote.
With the FR80, cashiers can sweep packets past without stopping: Newland rates its motion tolerance at up to 350 cm/s. It reads a standard-size (13 mil) EAN-13 from 0 to 140 mm in front of its window. Packaged goods made in India usually carry GS1 India EAN-13 codes starting with 890.
Add an RS-232 handheld scanner to the FR80's second RJ45 port and the cashier can scan a sack or carton where it sits; the port powers the handheld. Heavy staples such as rice, atta and oil tins are hard to lift past a counter window. Name the handheld you plan to add when you ask for a quote, because Newland sets a data format it must send.
Plan a mains socket at each FR80 lane, because the handheld port works only with the 5 V adapter. Newland gives the FR80 a peak current of up to 800 mA, more than the 500 mA a USB 2.0 port supplies. Its 5 V, 1.5 A adapter covers that with room to spare.
At a counter near an open shutter or in afternoon sun, keep the FR80 shaded and ventilated. It is rated to work from -20 °C to 50 °C, lower than the 60 °C of the FR4080 and FR27.
The FR80 reads QR Code and Data Matrix as well as 1D codes, on paper and on phone screens, including the codes on medicine labels. It reads the text in a UPI QR like any QR code, but payment happens in the customer's UPI app, not in the scanner.
Specifications
| General | |
|---|---|
| Model | NLS-FR80 on-counter scanner |
| Decode capability | 1D, 2D |
| Connectivity | Corded |
| Notification | Beep, LED indicator; six status indications; sound-effect and volume keys |
| Certifications | FCC Part 15 Class B, CE EMC Class B |
| Scanning | |
| Image sensor | 1280 × 1088 CMOS |
| Illumination | Red LED (610-620 nm) |
| 2D symbologies | PDF417, QR Code, Data Matrix, Aztec |
| 1D symbologies | Code 11, Code 128, Code 39, Code 32 (Italian Pharma Code), GS1-128 (UCC/EAN-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A/UPC-E, Coupon, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-14, ITF-6, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1 DataBar, GS1 Composite |
| Resolution | ≥ 3 mil (1D) |
| Depth of field, EAN-13 13 mil | 0-140 mm |
| Depth of field, EAN-13 5 mil | 50-90 mm |
| Field of view | 42.4° horizontal, 36° vertical |
| Scan angles | Roll 360°, pitch ±50°, skew ±50° |
| Minimum symbol contrast | 15% (Code 128, 10 mil) |
| Motion tolerance | 350 cm/s |
| Scan mode | Advanced sense mode |
| Ambient light | 0-100,000 lux (natural light) |
| Test conditions | 23 °C, 300 lux incandescent light, sample barcodes printed by Newland |
| Connectivity | |
| Interfaces | Main RJ45 port: USB or RS-232 to the host; secondary RJ45 port: RS-232 handheld scanner (with 5 V output); DC power jack |
| USB modes | USB HID keyboard, USB CDC (virtual COM), USB HID-POS |
| Operating voltage | 5 VDC ±5% |
| Current at 5 VDC | 280 mA operating (typical), 155 mA idle; peak up to 800 mA |
| Power adapter | 5 V DC, 1.5 A. Without it the FR80 can run on USB power, but the handheld port does not work. |
| Physical and environment | |
| Dimensions | Without base 151 mm (W) × 141.5 mm (H) × 97.5 mm (D); with base 151 mm (W) × 156.5 mm (H) × 108.5 mm (D), max. |
| Weight | 542-549 g without base, 678-681 g with base |
| Sealing | IP52 |
| Operating temperature | -20 °C to 50 °C |
| Storage temperature | -40 °C to 70 °C |
| Humidity | 5-95%, non-condensing |
| ESD | ±15 kV air discharge, ±8 kV direct discharge |
| Software | |
| Configuration | Newland EasySet; programming barcodes; serial commands |
| Drivers | JPOS, OPOS, UFCOM driver, USB-COM driver |
| Warranty | |
| Warranty | Covered by the manufacturer's warranty. The warranty period, terms and conditions are as declared by Newland. |
Ask for the USB or RS-232 data cable, and confirm the power adapter, in the same quotation.
Specifications from Newland's published documents, last checked 9 October 2026. Makers can change specifications without notice; we confirm the exact model and configuration in your written quotation. About our product information
Compare
| Feature | Newland FR80 | Newland FR4080 | Newland FR27 | Newland FR42-BT |
|---|---|---|---|---|
| Form | On-counter scanner, corded | Desktop scanner, corded | Compact desktop scanner, window facing up, corded | Desktop scanner, cordless (Bluetooth 5.0) |
| Image sensor | 1280 × 1088 | 1280 × 800 | 640 × 480 | 1080 × 1280 |
| Field of view | 42.4° H × 36° V | 51° H × 32° V | 68° H × 51° V | 62° H × 54° V |
| EAN-13 13 mil range | 0-140 mm | 10-280 mm | 20-105 mm | 10-130 mm |
| Interfaces | USB, RS-232 | USB, RS-232 | USB | Bluetooth 5.0; USB dongle |
| Sealing | IP52 | IP52 | IP42 | IP52 |
| Weight | 542-549 g without base, 678-681 g with base | 290 g | 120 g | 209 g |
| Operating temperature | -20 °C to 50 °C | -20 °C to 60 °C | -20 °C to 60 °C | -10 °C to 55 °C |
| Best for | Busy supermarket lanes with a large scan window | Billing counters that need RS-232 or a longer reading range | Small counters where customers show codes on phones | Counters that want no data cable to the PC |
If your job differs from what the FR80 is built for, these Newland models may fit it better:
Not sure which one fits? Tell us how you will use it and we will recommend a model.
Downloads
Questions buyers ask
The FR80 price depends on the cable or accessories you need and the quantity. Ask our team for today's competitive price: share your requirement and budget, and we will help you choose the right configuration and send a written quotation with current pricing and delivery time.
The FR80 is a larger on-counter scanner (151 mm wide, 542-549 g without base) with a 350 cm/s motion tolerance and a port for a handheld scanner, made for lanes that sweep goods past the window. The FR4080 is a smaller desktop scanner (290 g) that reads a 13 mil EAN-13 further out, to 280 mm against 140 mm, and suits smaller counters.
Yes. The secondary RJ45 port takes an RS-232 handheld scanner and powers it at 5 V, so staff can scan heavy items without lifting them. Newland requires 9600 baud, 8 data bits, no parity, 1 stop bit and a code-type prefix on each scan. The FR80 must be on its power adapter for this port to work.
Newland rates the FR80's power adapter at 5 V, 1.5 A. The scanner can also run from the PC's USB port without it, but then the handheld port cannot be used, and Newland gives a peak current of up to 800 mA, more than a USB 2.0 port's 500 mA. We suggest using the adapter at every busy lane.
Usually, yes. Over USB it can act as a keyboard, so scans appear wherever the cursor is, or as a virtual COM port or HID-POS device. RS-232 suits older POS machines. Scans from a handheld on the second port arrive through the same cable, so the POS sees one scanner.
Yes. Newland states the FR80 reads printed barcodes and on-screen barcodes, so customers can show e-coupons, loyalty or order codes on their phones. It reads QR Code, Data Matrix, PDF417 and Aztec.
Yes. We install the FR80 at your site, set it to send data the way your ERP, warehouse or billing software expects (our own warehouse management system included) and train your team. Tell us the software when you ask for a quote, and we include the setup in the quotation.
Send what you scan, where you scan it and the software it feeds; we reply with a written quotation.
